DmaxStore Head Gasket Replacement Package, 2011-2016 LML

Fits: 2011 thru 2016 Chevy Silverado/GMC Sierra 2500HD/3500HD LML Duramax Diesel

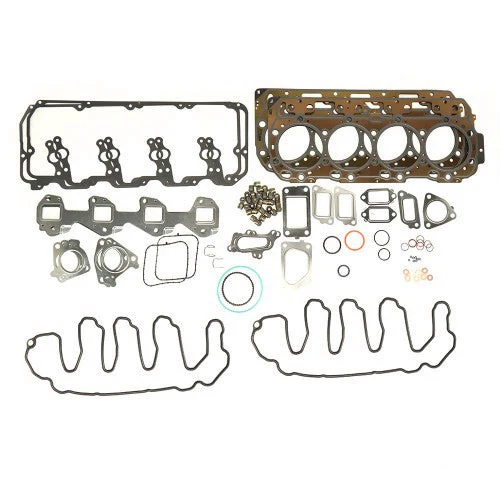

This kit contains the necessary replacement parts you will need to replace both head gaskets on your LML Duramax.
Includes:

• 1 x DmaxStore Head Gasket Install Kit

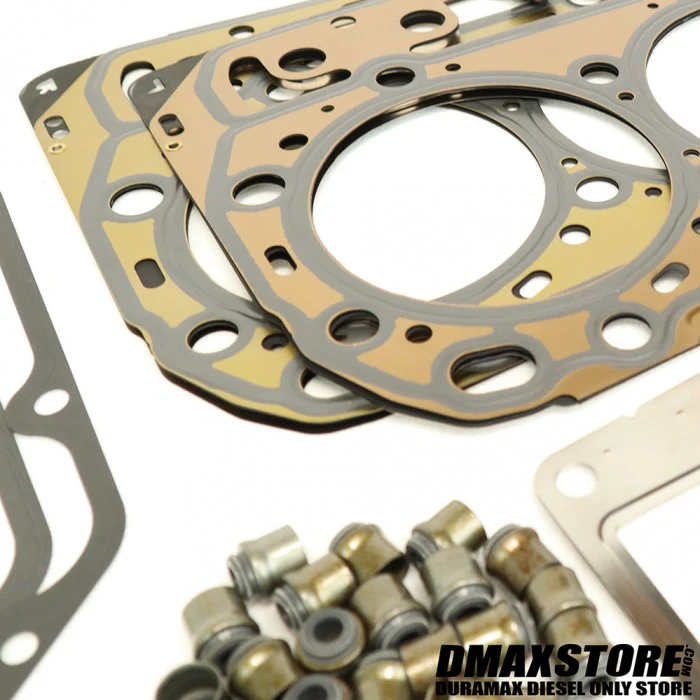

• 1 x DmaxStore Replacement Left Head Gasket Part# DMAX-7785 (C-Series)
• 1 x DmaxStore Replacement Right Head Gasket Part# DMAX-7788 (C-Series)

Optional:

• DmaxStore High Flow Thermostats
• Genuine GM Thermostats

• Mishimoto Thermostats
• MAHLE Head Bolts
• DmaxStore Performance Head Stud Kit

  • Recommended over the MAHLE Head Bolts, these are a superior replacement for the head bolts and are rated at 220,000 psi tensile strength.
• High Pressure Fuel Lines (The stock units are not re-usable)

Tech tip: Installing head gaskets on your Duramax is very technical and labor intensive. You should have strong mechanical skills to complete this job, 30-35 hours should be allocated. It is highly recommended to add a DmaxStore head stud kit. Other repairs such as water pump and injectors should be considered since you will have easy access at this time. We use and recommend C series gasket because it is the thickest of the 3 available. Valve adjustments are not always necessary but should be checked.

DmaxStore Notes:

• This is also a good time to replace your glow plugs. The glow plugs may need replacement due to coolant contamination. If your glow plugs haven't been replaced recently, there is a slim chance they may break off in the cylinder head during removal. It is much easier to extract a broken glow plug with the cylinder heads off.
• Pictures may NOT show everything that is included
