DmaxStore Head Gasket Replacement Package, 2006-2010 LBZ/LMM

Fits: 2006 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LBZ/LMM Duramax Diesel

This kit contains the necessary replacement parts you will need to replace both head gaskets on your LBZ or LMM Duramax.
Includes:

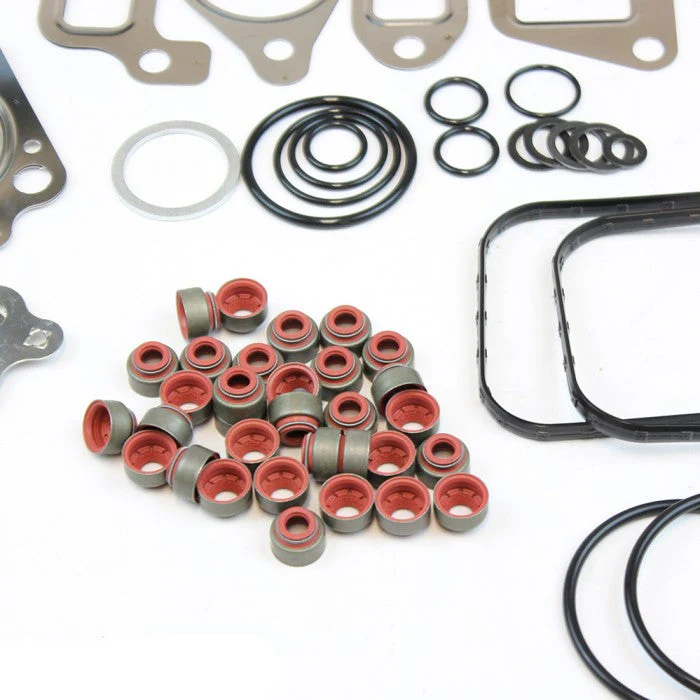

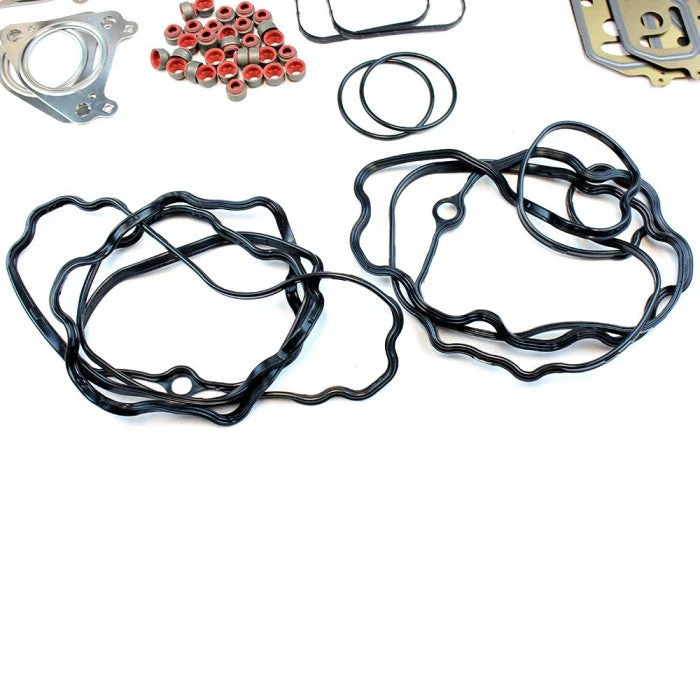

• 1 x Genuine GM Head Gasket Install Kit Part# 98434773

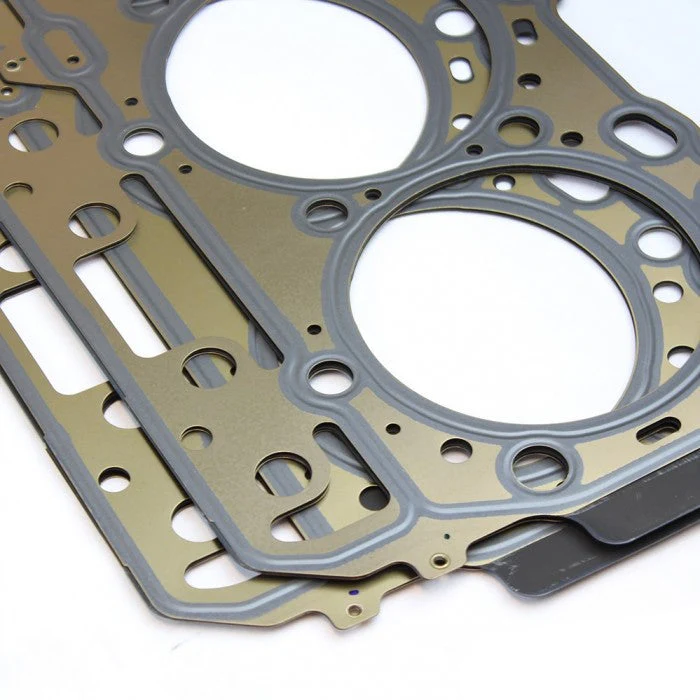

• 1 x DmaxStore Left Head Gasket Part# DMAX-7785 (C-Series)
• 1 x DmaxStore Right Head Gasket Part# DMAX-7788 (C-Series)

​Optional:

• DmaxStore High Flow Thermostats
• Genuine GM Thermostats

• Mishimoto Thermostats
• MAHLE Head Bolts​
• DmaxStore Performance Head Stud Kit

  • ​Recommended over the MAHLE Head Bolts, these are a superior replacement for the head bolts and are rated at 220,000 psi tensile strength.

Tech tip: Installing head gaskets on your Duramax is very technical and labor intensive. You should have strong mechanical skills to complete this job, 30-35 hours should be allocated. It is highly recommended to add a DmaxStore head stud kit. Other repairs such as water pump and injectors should be considered since you will have easy access at this time. We use and recommend C series gasket because it is the thickest of the 3 available. Valve adjustments are not always necessary but should be checked.

DmaxStore Note: This is also a good time to replace your glow plugs. The glow plugs may need replacement due to coolant contamination. If your glow plugs haven't been replaced recently, there is a slim chance they may break off in the cylinder head during removal. It is much easier to extract a broken glow plug with the cylinder heads off.
