Pacbrake Quick Mount Single Channel Wireless Controls With Remote and Compressor

Fits: Universal

Experience the convenience of controlling your air springs right from the comfort of your cab with Pacbrake Wireless Controls! Universally compatible, these controls seamlessly fit the frame of any vehicle and are compatible with all air springs available on the market. What's more, installation is a breeze with common mechanic tools – no need for running lines or wires into the cab, and absolutely no drilling required! Plus, the kit includes everything you need for a hassle-free installation process.

Features:

• Single Path Contol
• Waterproof and debris resistant

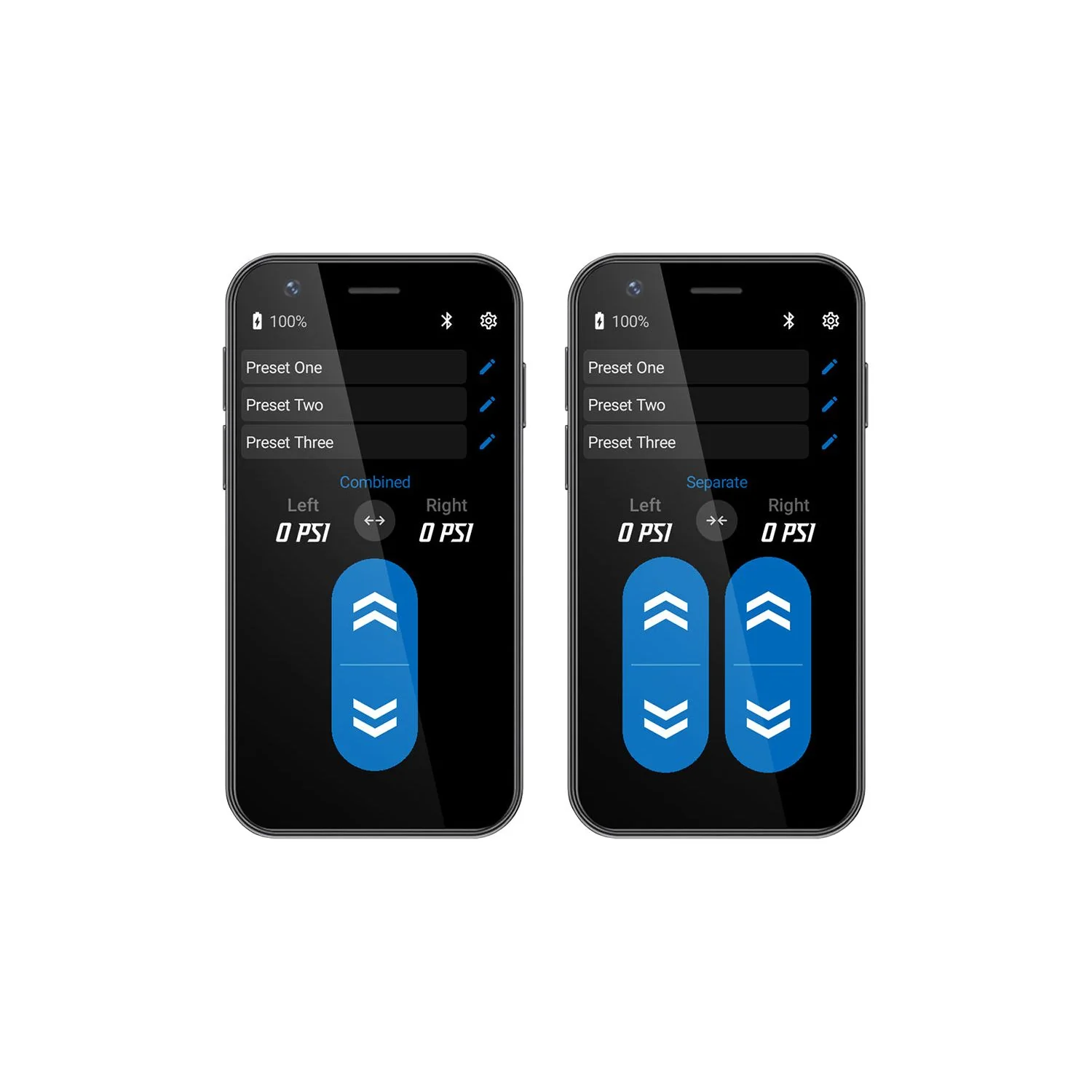

• Live feedback via remote app
• Military grade solenoids
• Strong Bluetooth connection
• Max Working Pressure / Duty Cycle: 827.4 kPa [120 psi], 9% @ 689.5 kPa [100 psi]
• Max Continuous Run Time: 5 minutes ON / 55 minutes off
• Rated Flow: 29 L/min [1.02CFM] @ 0kPa [0 psi]

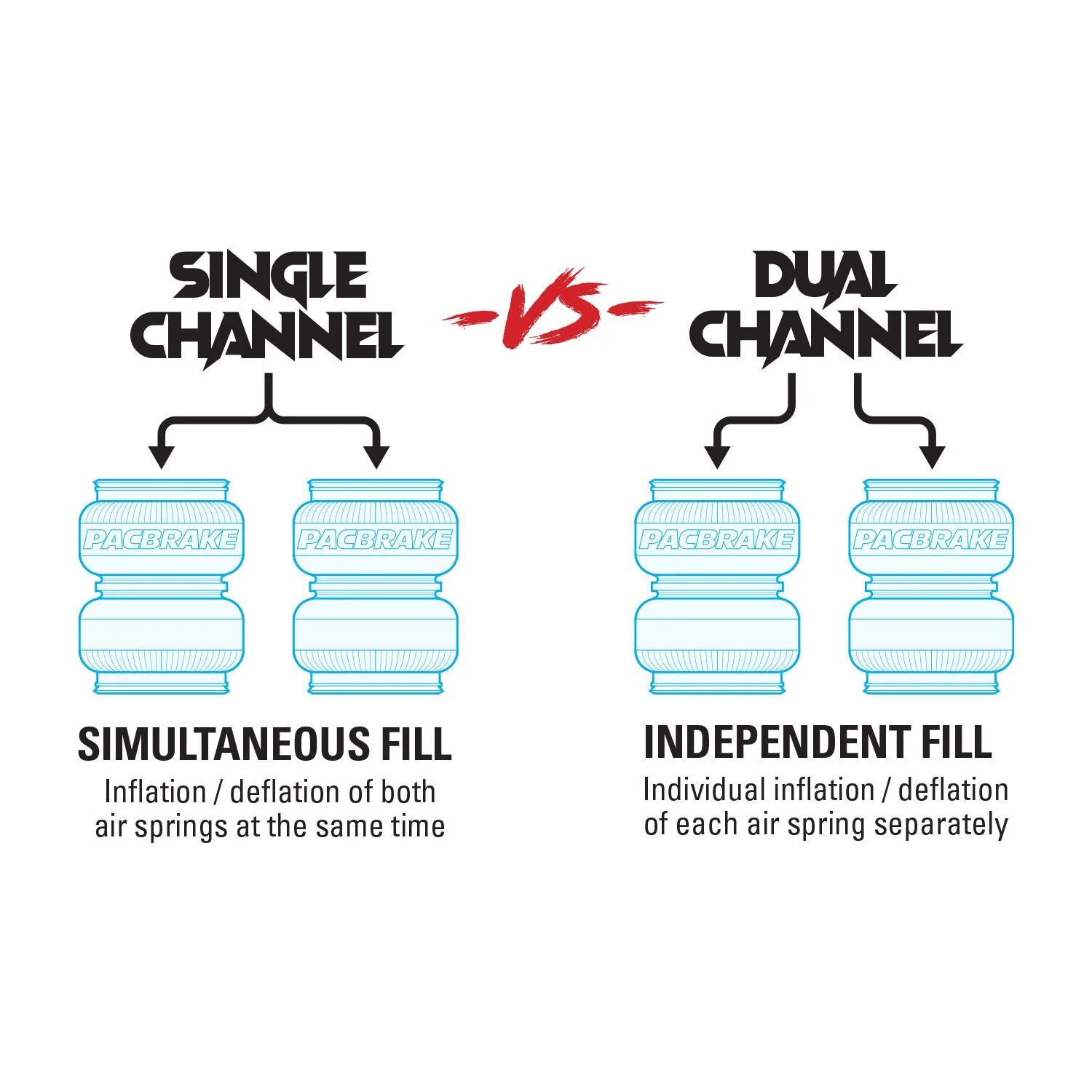

• Simultaneous Fill
• Ingress Protection: IP55 compressor, IP67 electric connectors
• Weight: 1.09 kg [2.41 lbs]
• Ambient Operating Temperature Range: -40ºC to +70ºC [-40ºF to +158ºF]
• Normal Supply Voltage 12 VDC Max Current Draw: 11 Amps
• Limited Warranty

Includes:

• HP90 12V DC Air Compressor
• Necessary hardware

Notes:

• The kit is on demand and intended to use without an air tank

Install Instructions
