Merchant Automotive Transfer Case Bearing and Seal Kit 263XHD 2001-2007 LB7/LLY/LBZ

Fits: 2001 Thru 2007 Chevy Silverado/GMC Sierra 2500HD/3500HD LB7/LLY/LBZ Duramax Diesel

The Merchant Automotive Deluxe Bearing and Seal Kit for the NP263XHD contains all necessary bearings and seals for the transfer case, along with low range shift fork pads and wear pads for the planetary gearset. This comprehensive kit is ideal for those seeking to fully renew their transfer case, especially after experiencing a fluid-related issue such as a pump rub leak or seal leak.

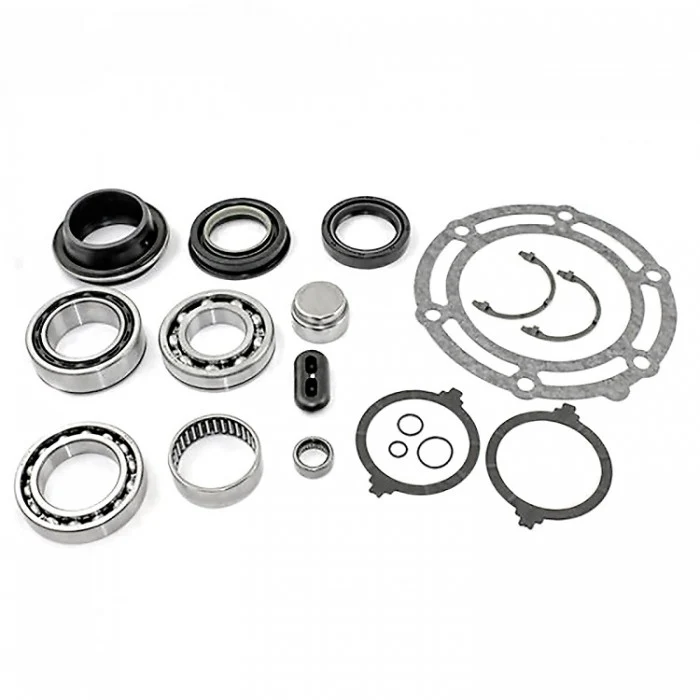

Includes:

• A23 Speed Sensor Seal
• A13 Rear Output Seal
• Transfer Case Gasket
• Snap Ring Hole Grommet
• B25 Rear Output Shaft Bearing
• A7 Front Transfer Case Output Seal
• A9 Front Transfer Case Input Seal
• B18 Front Output Shaft Bearing
• B22 Front Transfer Case Bearing
• A17 Shift Fork Pad - Pair
• B12 Planetary Thrust Washer
• A33 Selector Shaft Bearing
• B11 Input Gear Bearing
• B8 Front Input Bearing
• Selector Shaft Sensor, Detent Plug O-Ring
• B30 XHD HD Transfer Case Pickup Tube Seal, 49-Spline Pump
