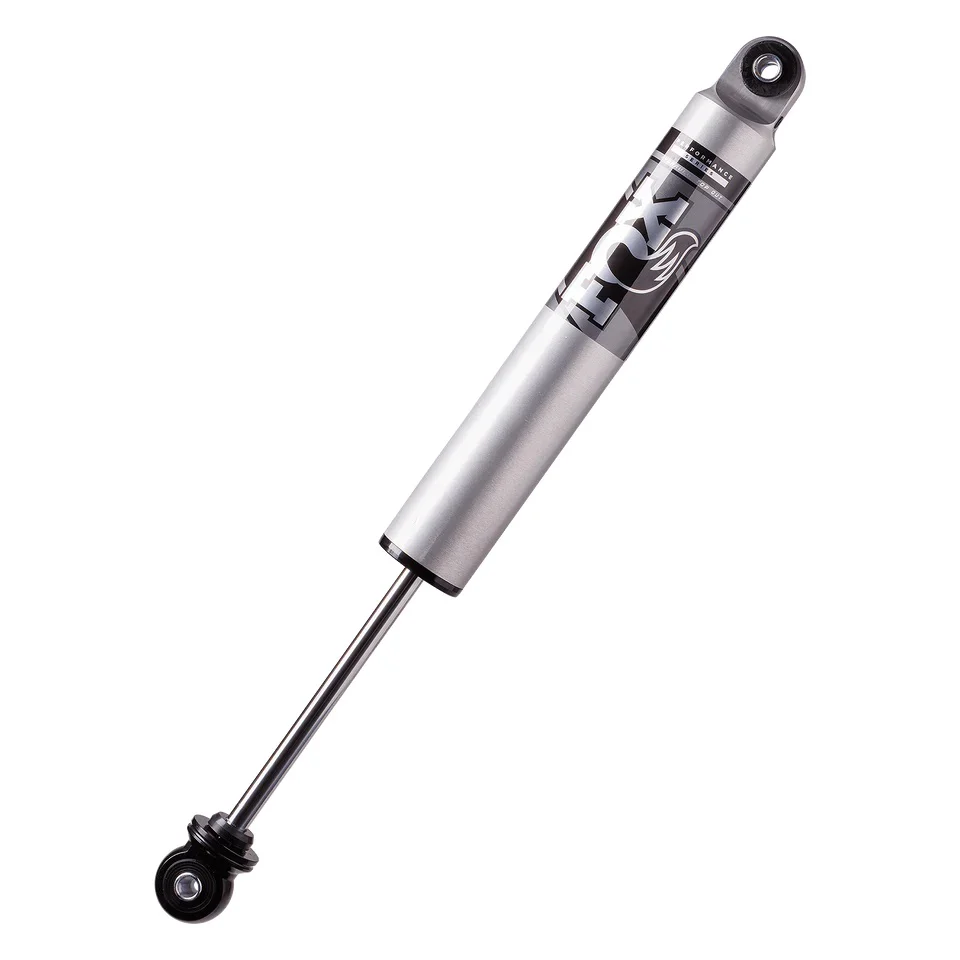

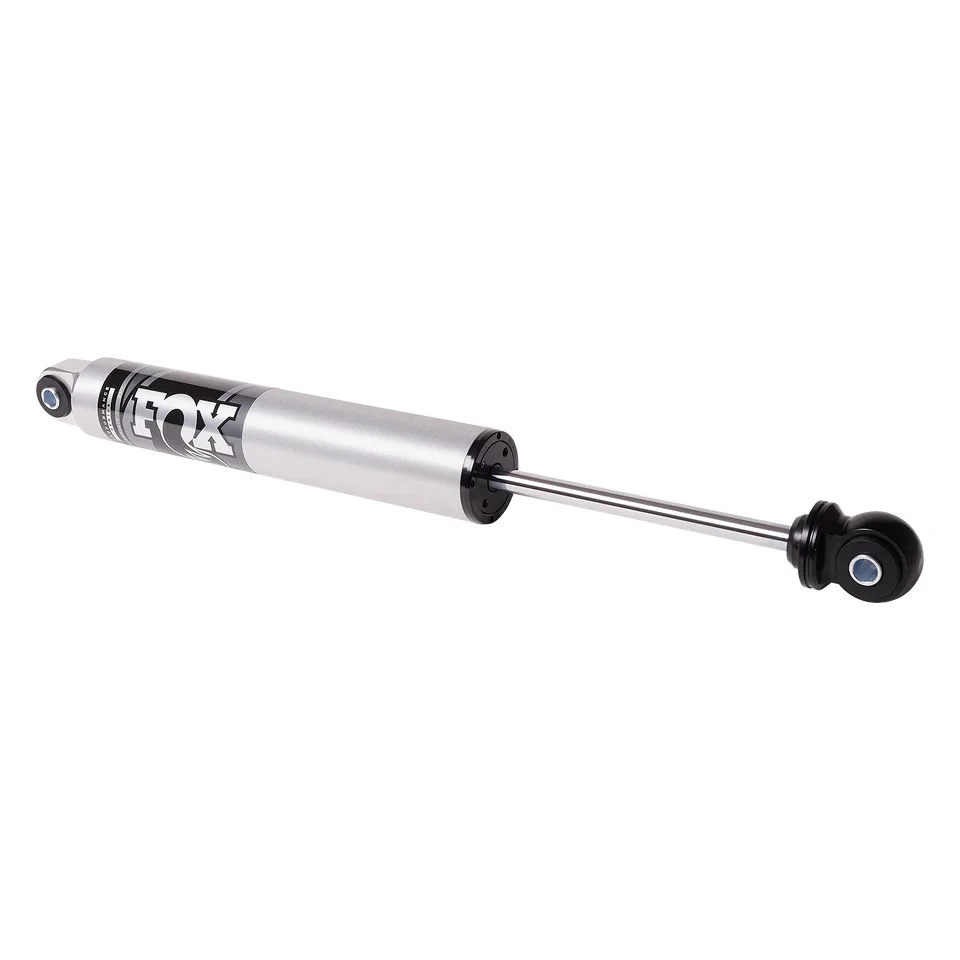

Fox 2.5 Performance Series IFP HTO Rear Shocks, 2011-2025 L5P

FOX 2.5 Performance Series HTO shock is a bolt-on shock loaded with position-sensitive technology, vehicle-specific valving, and larger pistons to improve on and off-road performance. A type II anodized aluminum body efficiently dissipates heat and prevents corrosion. The 2.5-inch shock body features an internal floating piston (IFP) to separate the shock oil from the high-pressure nitrogen, optimizing damping.  Hydraulic Top Out (HTO) technology offers usable position-sensitive rebound damping control on and off the pavement. HTO reduces harsh top-outs and increases comfort by forcing shock oil through a secondary shim stack to slow down shock shaft speed; HTO is particularly beneficial after installing heavier, aggressive tires and applications lifted higher than OEM specification. Bolt-on 2.5 Performance Series HTO shocks to increase damping capacity and ride in comfort with position-sensitive rebound control.

Features:

• 2.5” Impact extruded 6061-T6 aluminum shock body

• Type II clear-anodized body plating

• High-flow velocity-sensitive damping

• 5/8” hard chrome shaft

• Internal floating piston (IFP)

• Hydraulic Top Out (HTO) piston


Notes:

• Hardware is NOT included
