Fass Connect Universal Digital Monitoring System

Fits: Universal

The FASS Connect Lite Digital Monitoring System is designed for a simple, clean installation and lets you monitor your FASS Fuel System’s filter life, fuel pressure, and other drivetrain parameters using powerful wireless technology.

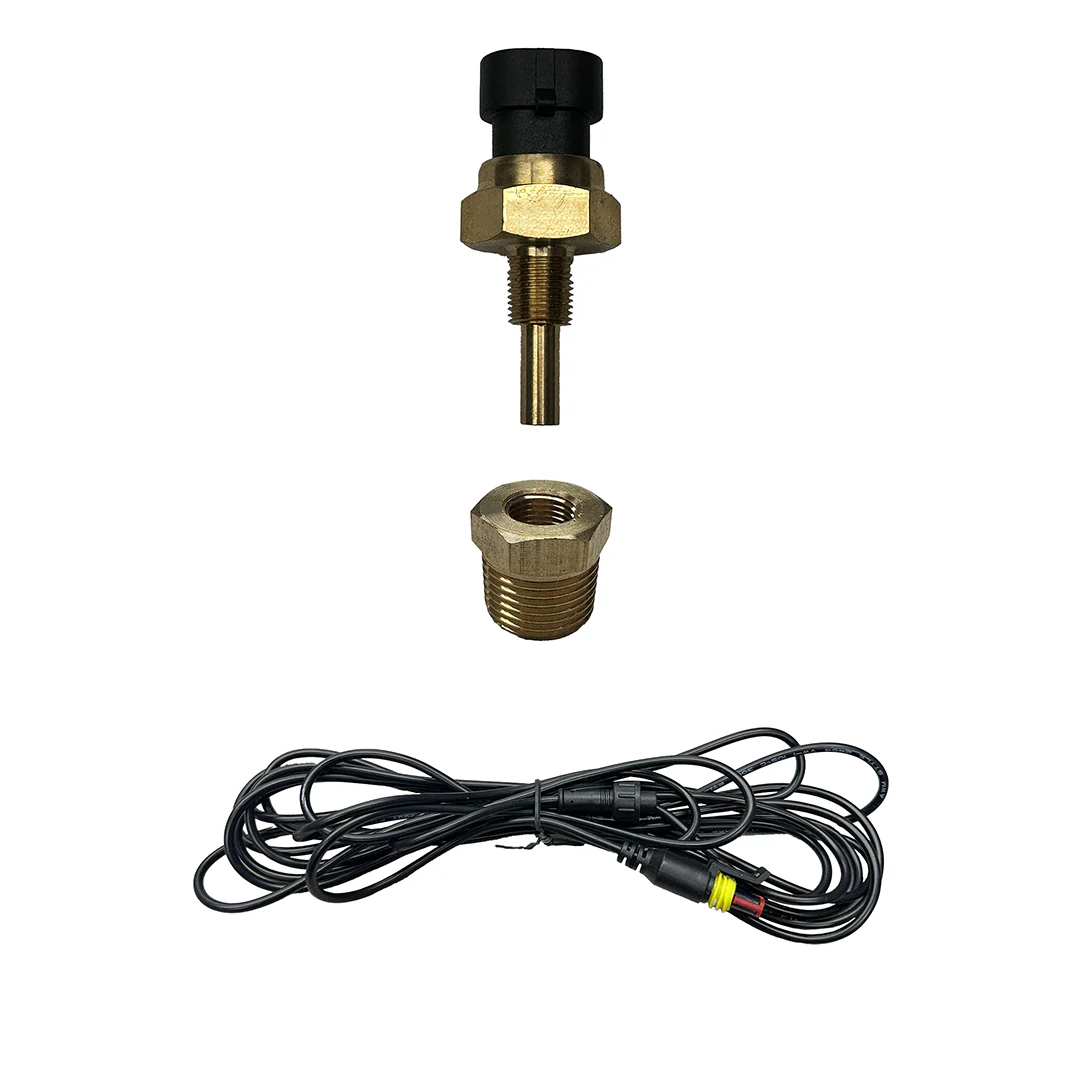

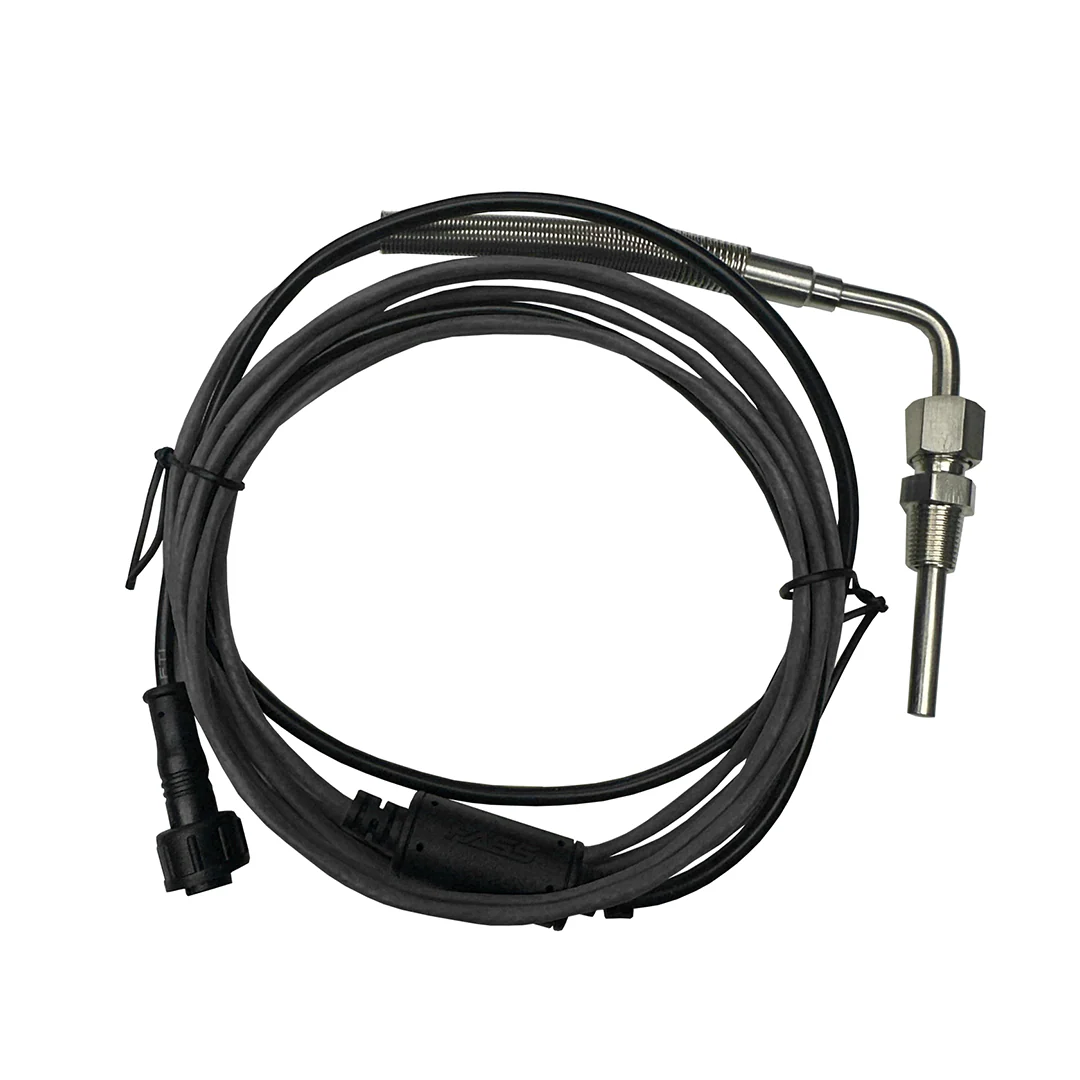

The FASS Connect Lite has 5 sensor inputs that support a 0–100 PSI pressure sensor, a –40° to 260° temperature sensor, and a 2,000° exhaust gas temperature sensor. In addition to monitoring, it includes 2 relay trigger outputs to power FASS Fuel Heaters or other accessories, such as auxiliary lights, directly from the FASS Connect App.

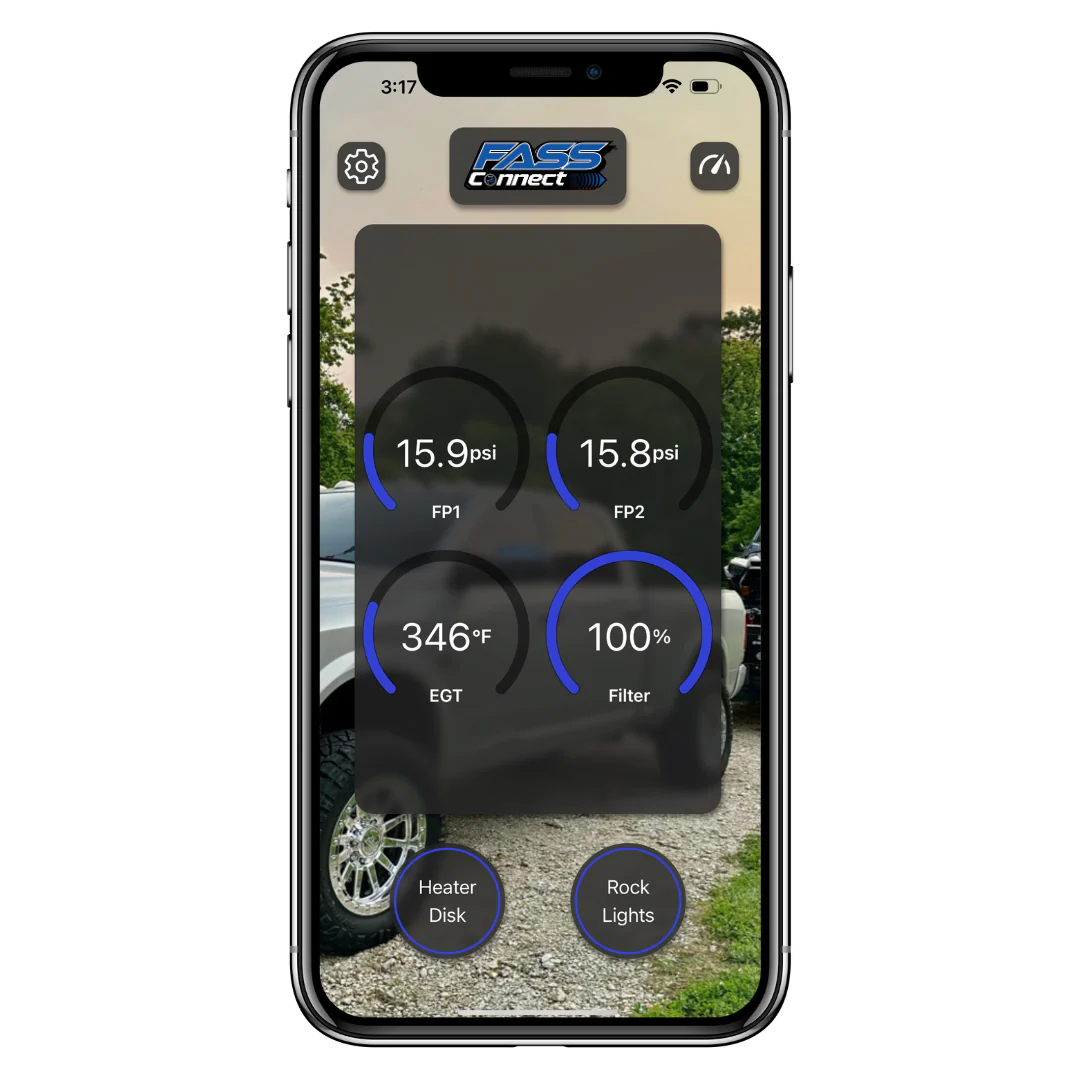

The FASS Connect App can monitor up to 8 parameters at a time—5 sensor inputs, filter life, GPS speed, and battery voltage.

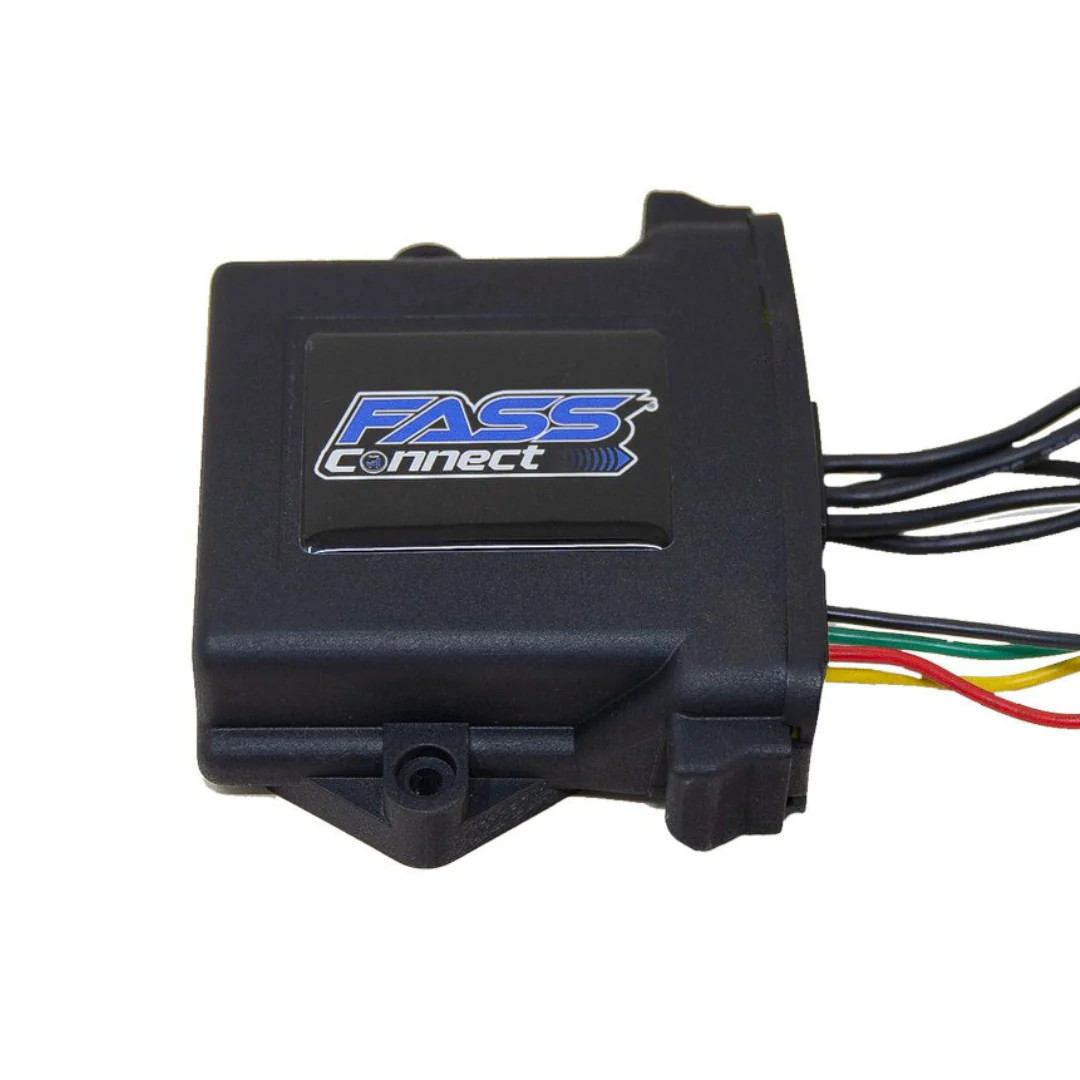

The FASS Connect ECU communicates wirelessly with the FASS Connect App, enabling an ultra‑clean installation and greater flexibility.

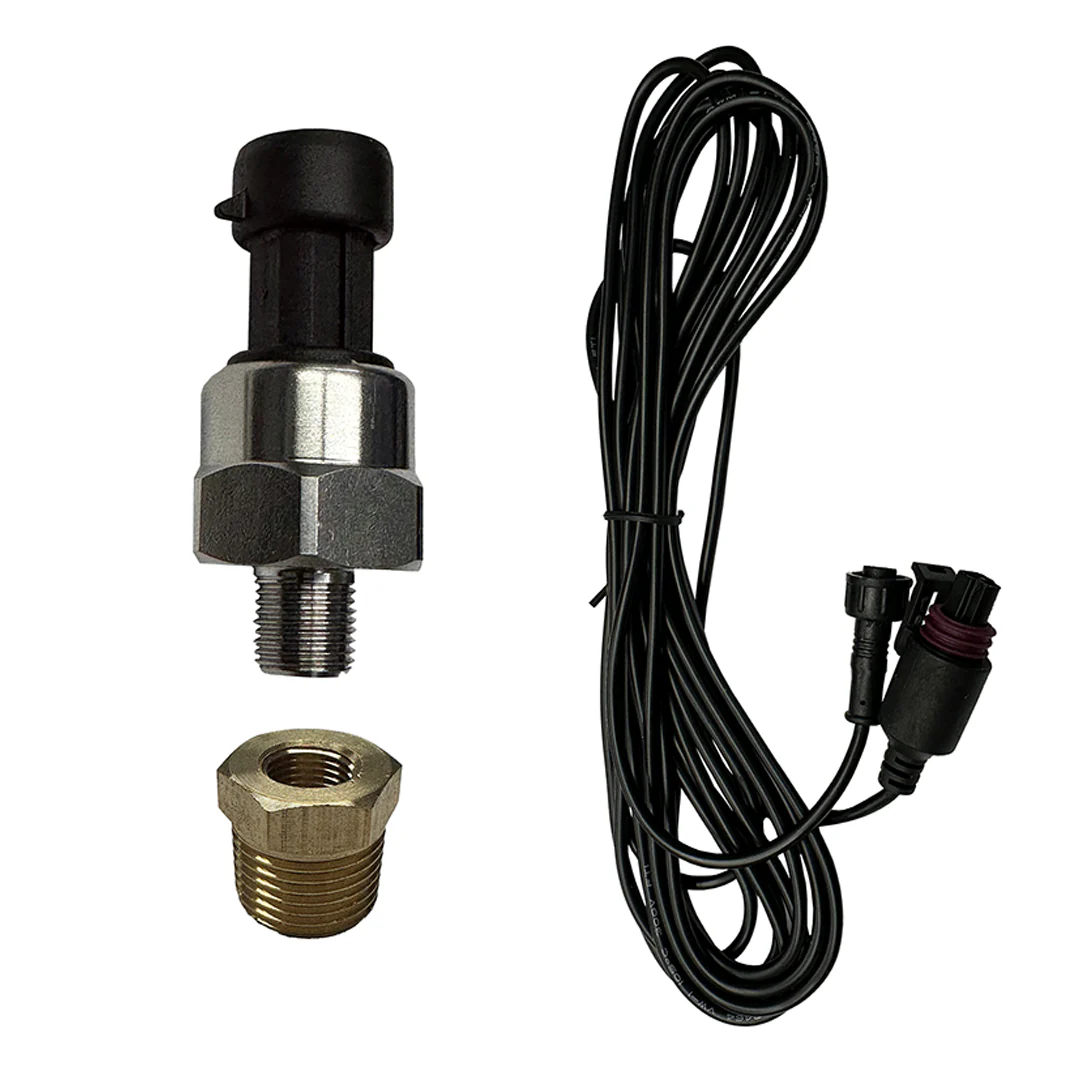

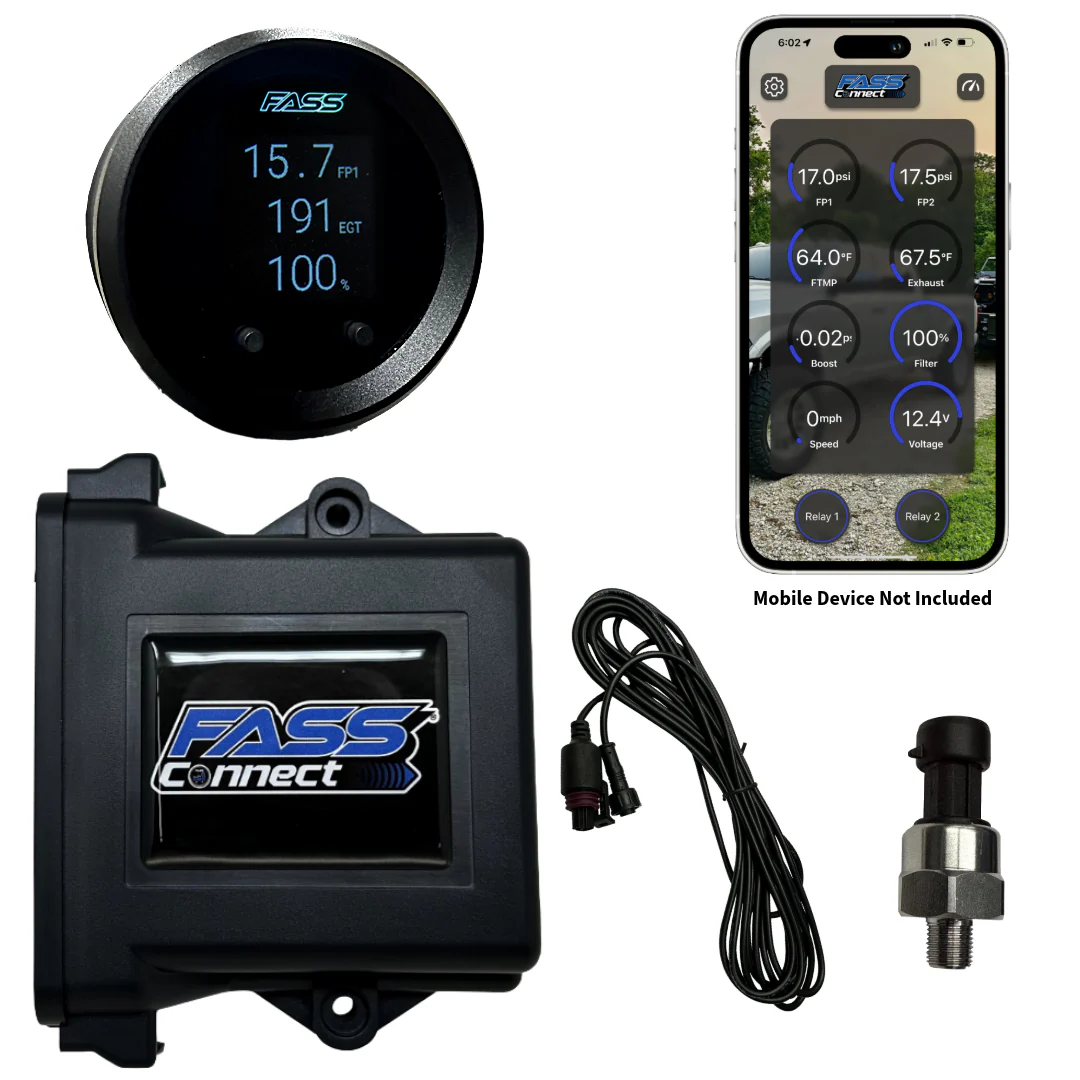

This kit includes the FASS Connect ECU and a 0–100 PSI fuel pressure sensor (additional accessory sensors available separately).
Adding a second fuel pressure sensor enables real‑time monitoring of the Extreme Water Separator's filter life, letting you know when service is needed. Sensors can be mixed and matched to create any combination you need for your application.

Features:

• 2x relay trigger outputs that allow you to power on your FASS Fuel Heaters or other accessories like auxiliary lights right from the FASS Connect APP

• 5 sensor inputs

• Wireless technology

• Up to 1 mile Bluetooth connectivity

• App can be used without a monitor

• GPS speed reading

• Temp sensor applicable to any fluids

• Gauge can be customized through the app

• ECU communicates wirelessly

• Sensors can be mixed and matched

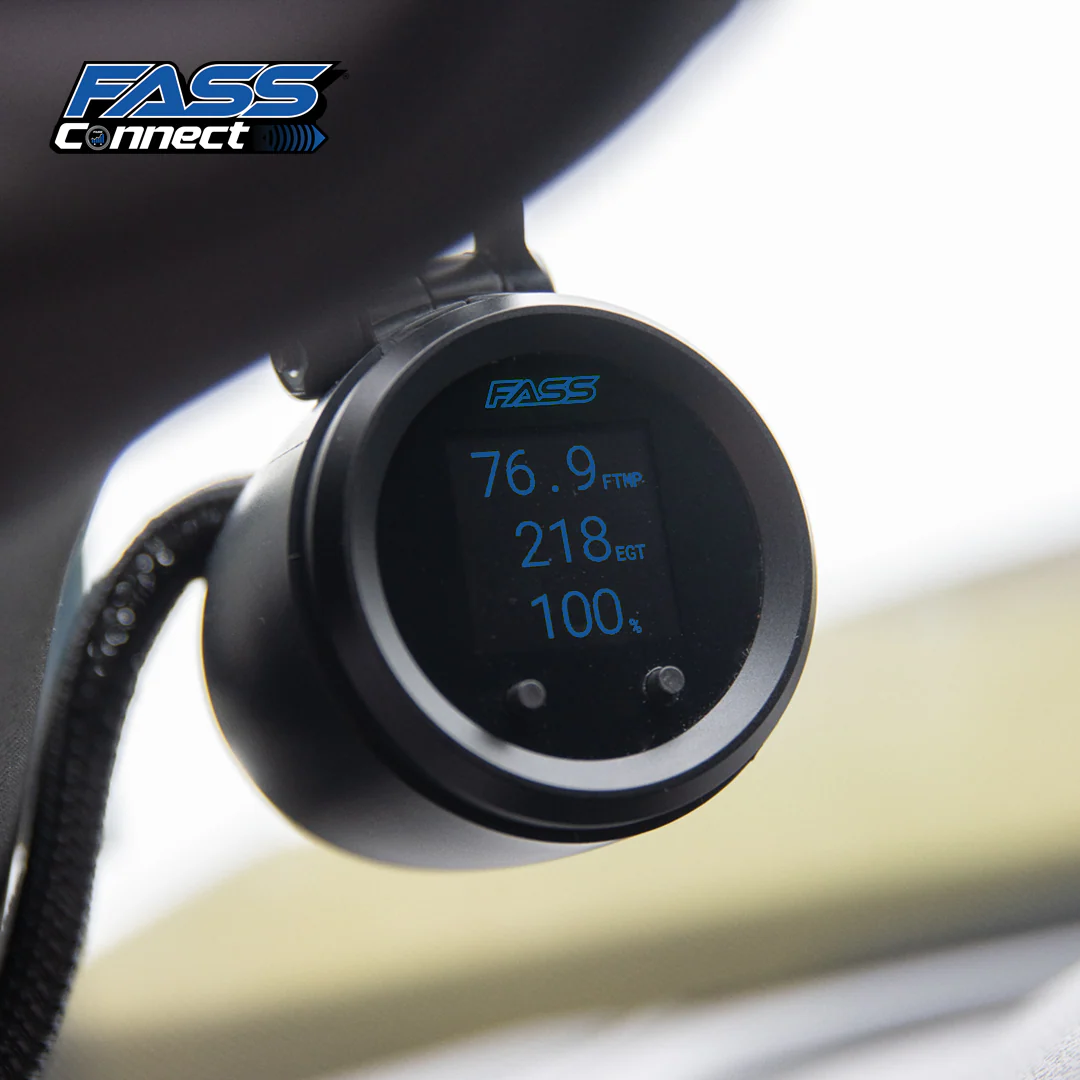

• Gauge can display fuel pressure, filter life, boost, and EGT

Includes:

• (1) FASS Connect ECU

• The FASS Connect App is available for free and can be downloaded on the Apple App Store or Google Play Store.

• (2) Ring Terminals

• (1) Micro add-a-fuse and corresponding fuse

• (1) Mini add-a-fuse and corresponding fuse

Instructions:

• Installation Manual

Warranty:

• 1 Year warranty

DmaxStore Notes:

• Additional sensors are available for purchase as accessories

• For safety purposes, please do not change or modify settings in the FASS Connect App while driving. We strongly recommend securing your phone to a mount for hands-free operation while the vehicle is in motion.
