Kryptonite Stage 3 Leveling Kit w/Fox 2.5 Shocks, 2020-2025 L5P
Fits: 2020 thru 2025 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel
This Kryptonite Leveling Kit is a heavy hitter for Duramax owners who want more than just basic shocks. Offered exclusively by DmaxStore, you’re getting a unique pairing of Kryptonite’s legendary suspension components with high-end Fox 2.5 Elite Series shocks. Give your Duramax truck the ultimate ride and control it deserves on or off-road!

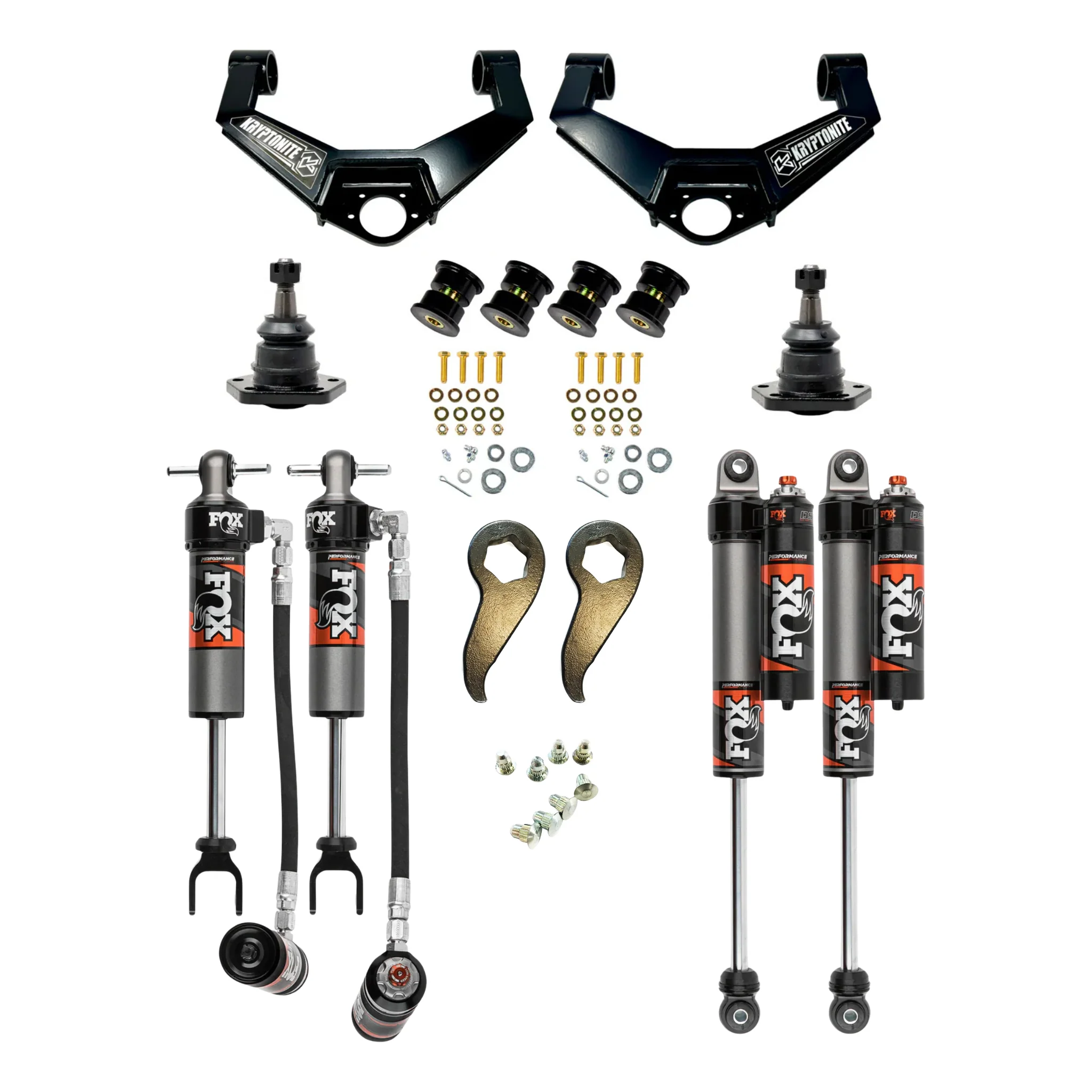

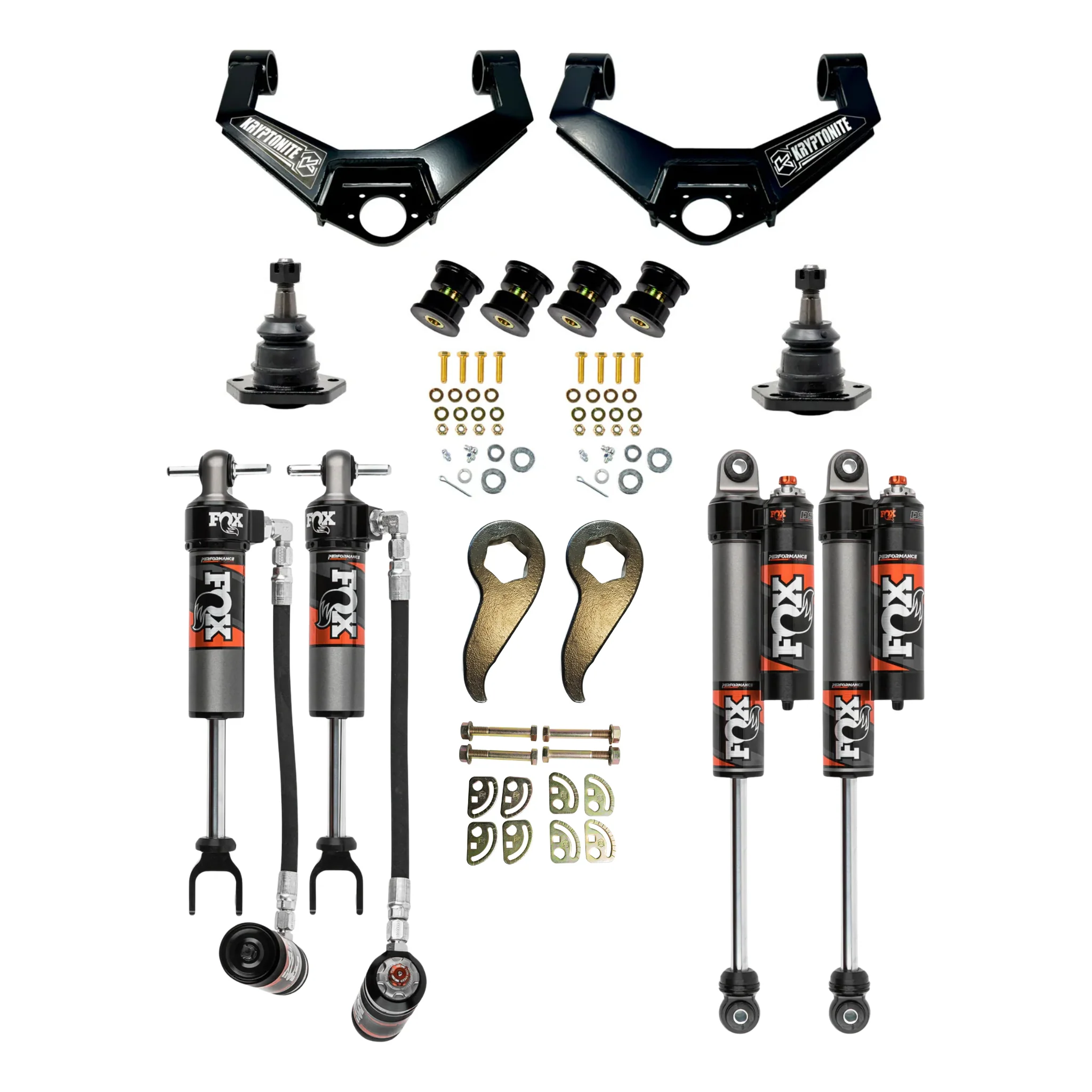

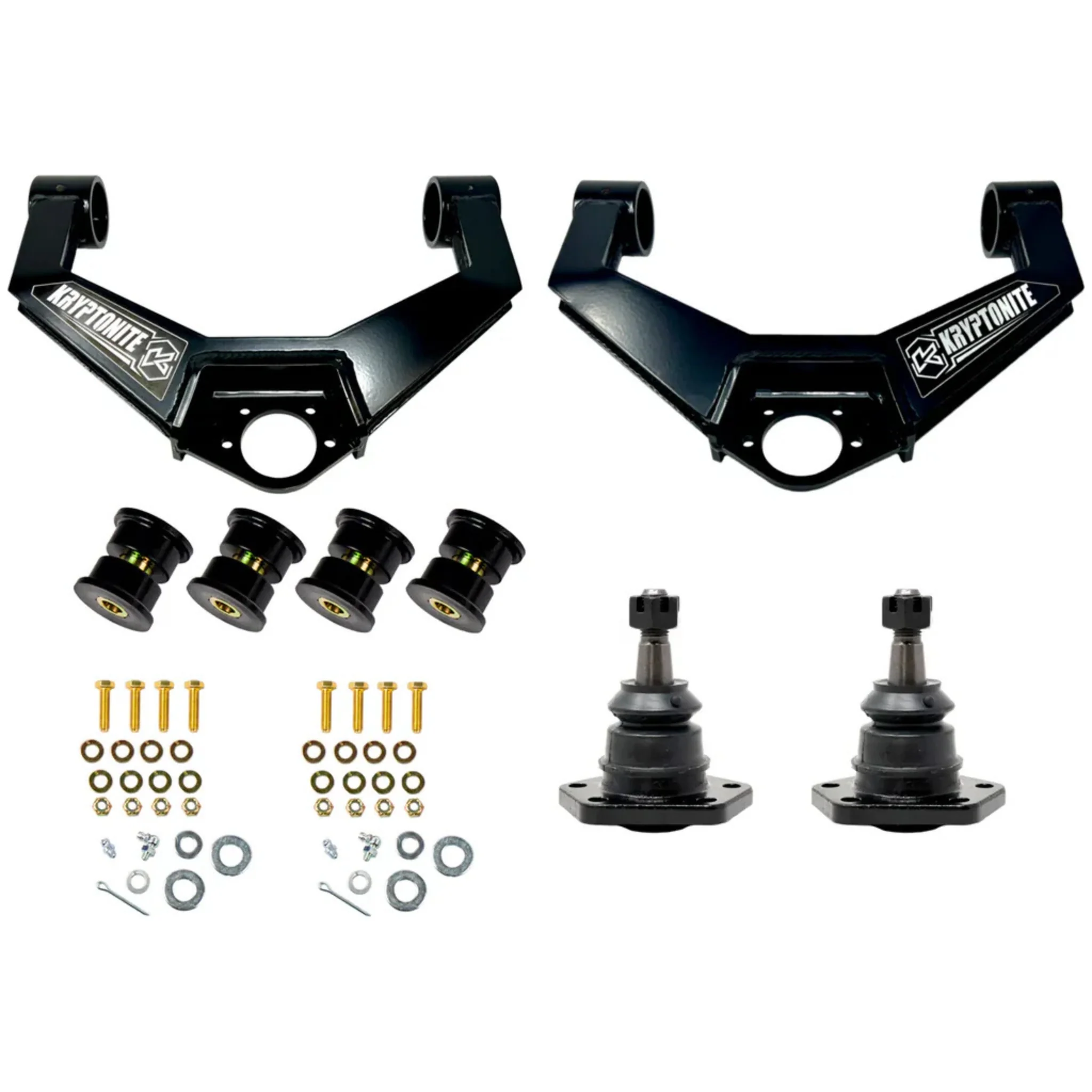

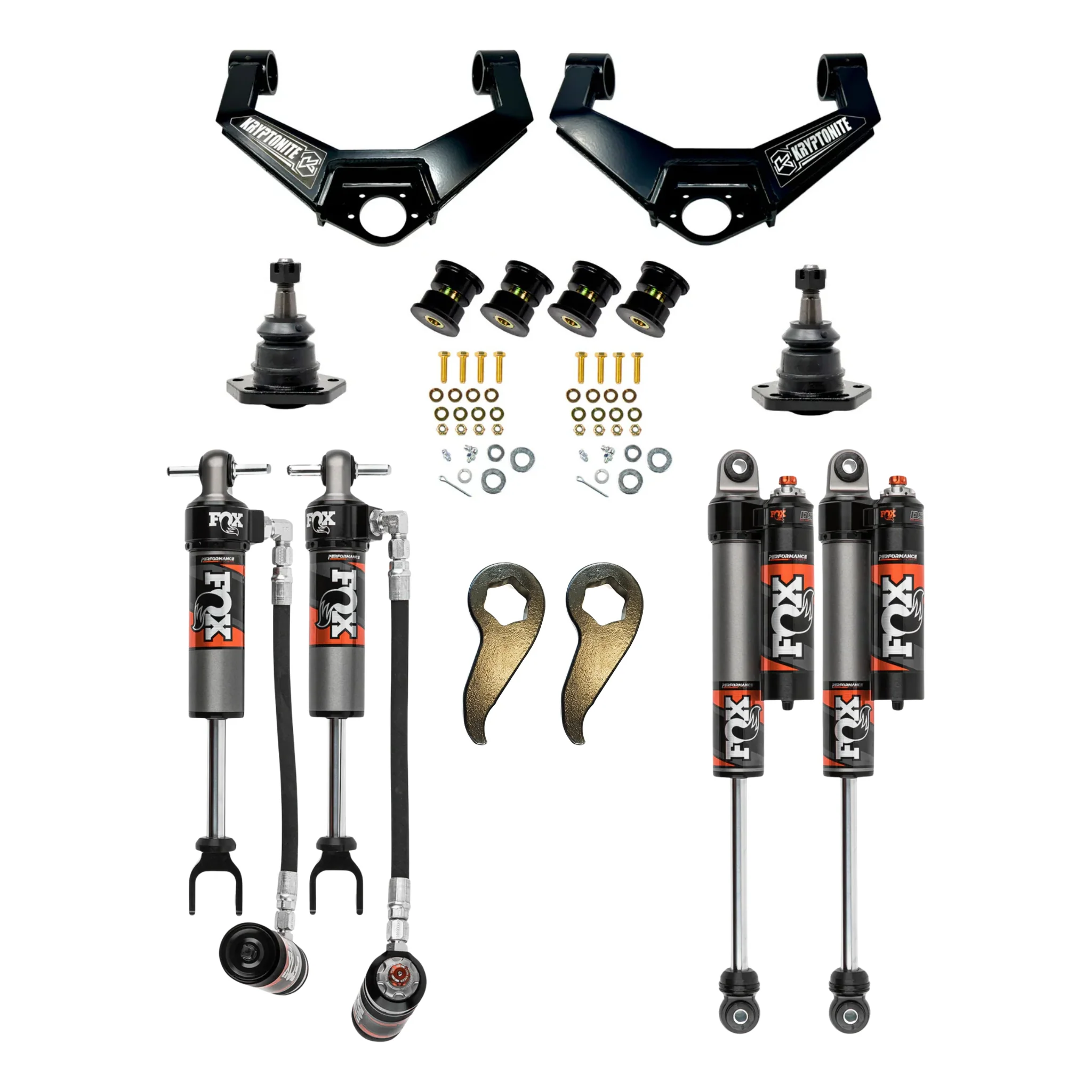

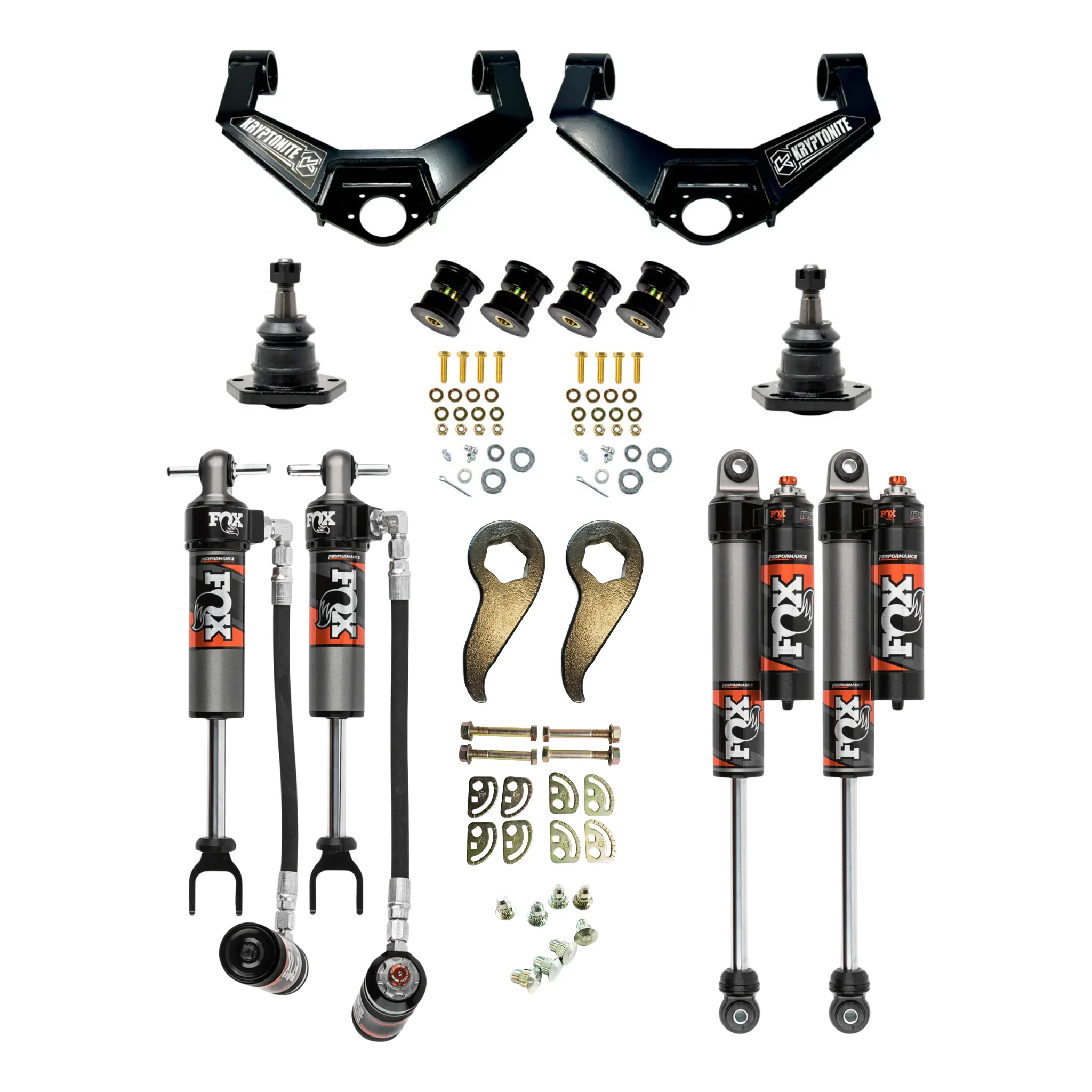

- (1) Kryptonite Upper Control Arm Kit (Part# KRUCA20)

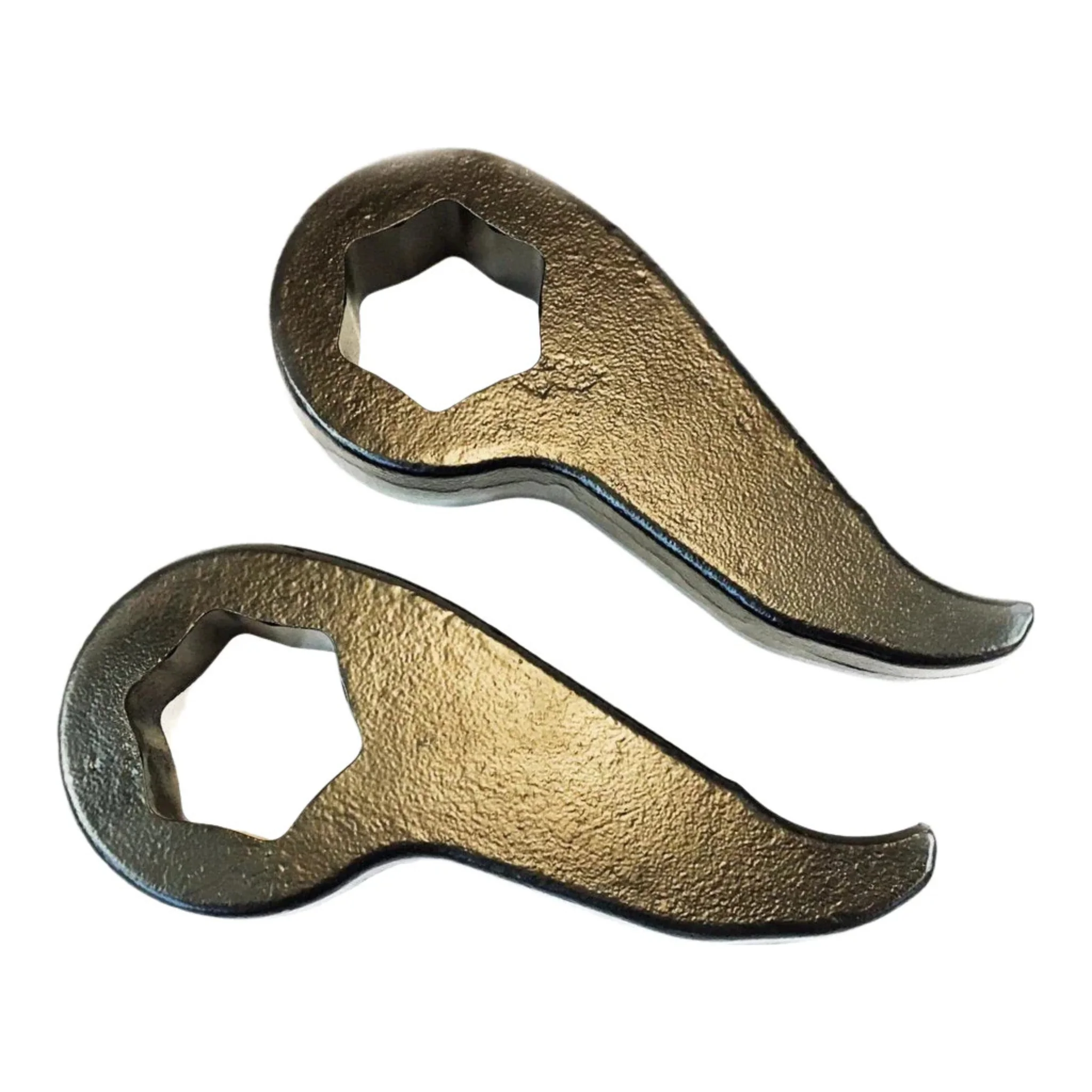

- (2) Kryptonite Leveling Keys (Part# KRKEY20)

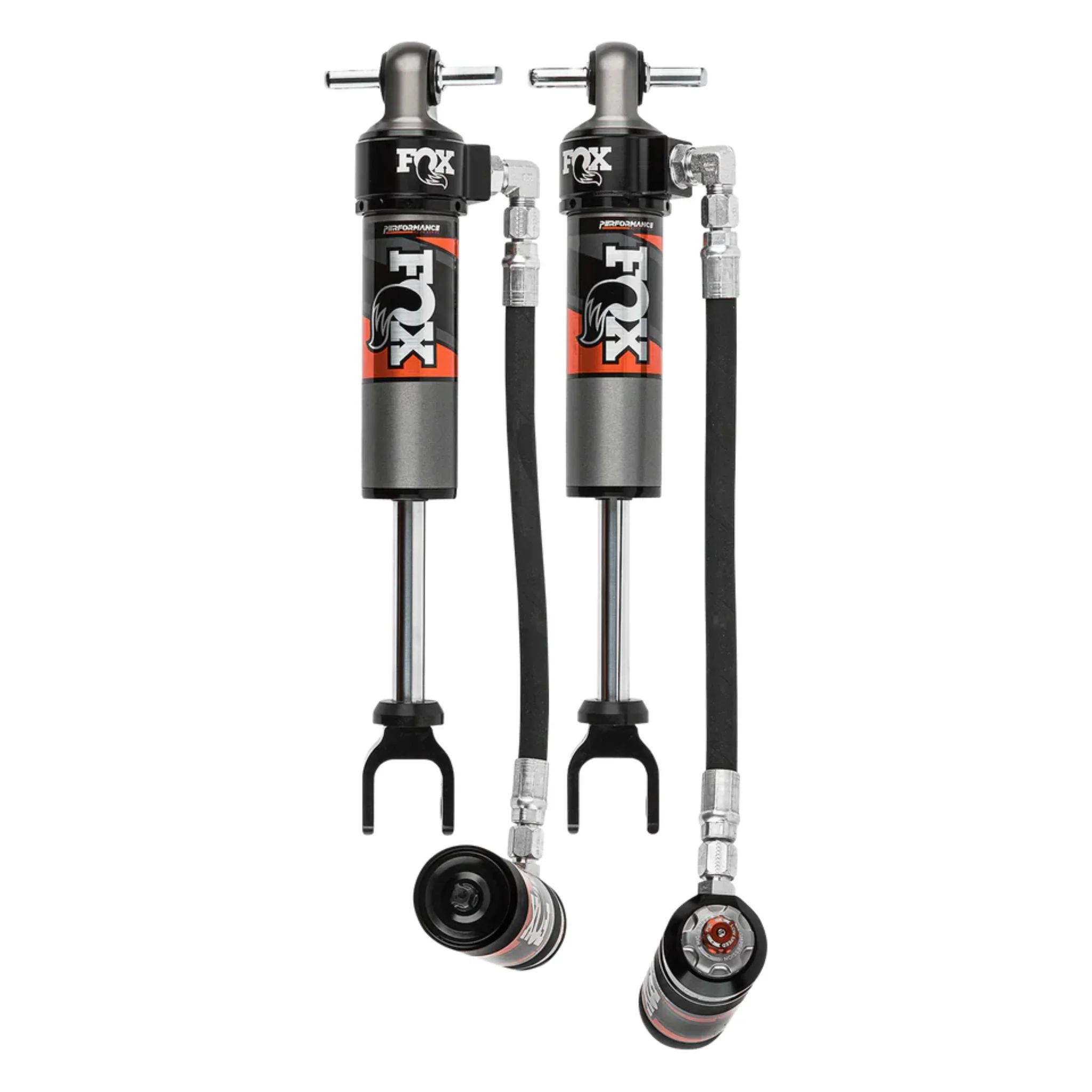

- (2) Fox 2.5 Performance Elite Series Resi Front Shocks (Part# 883-26-084)

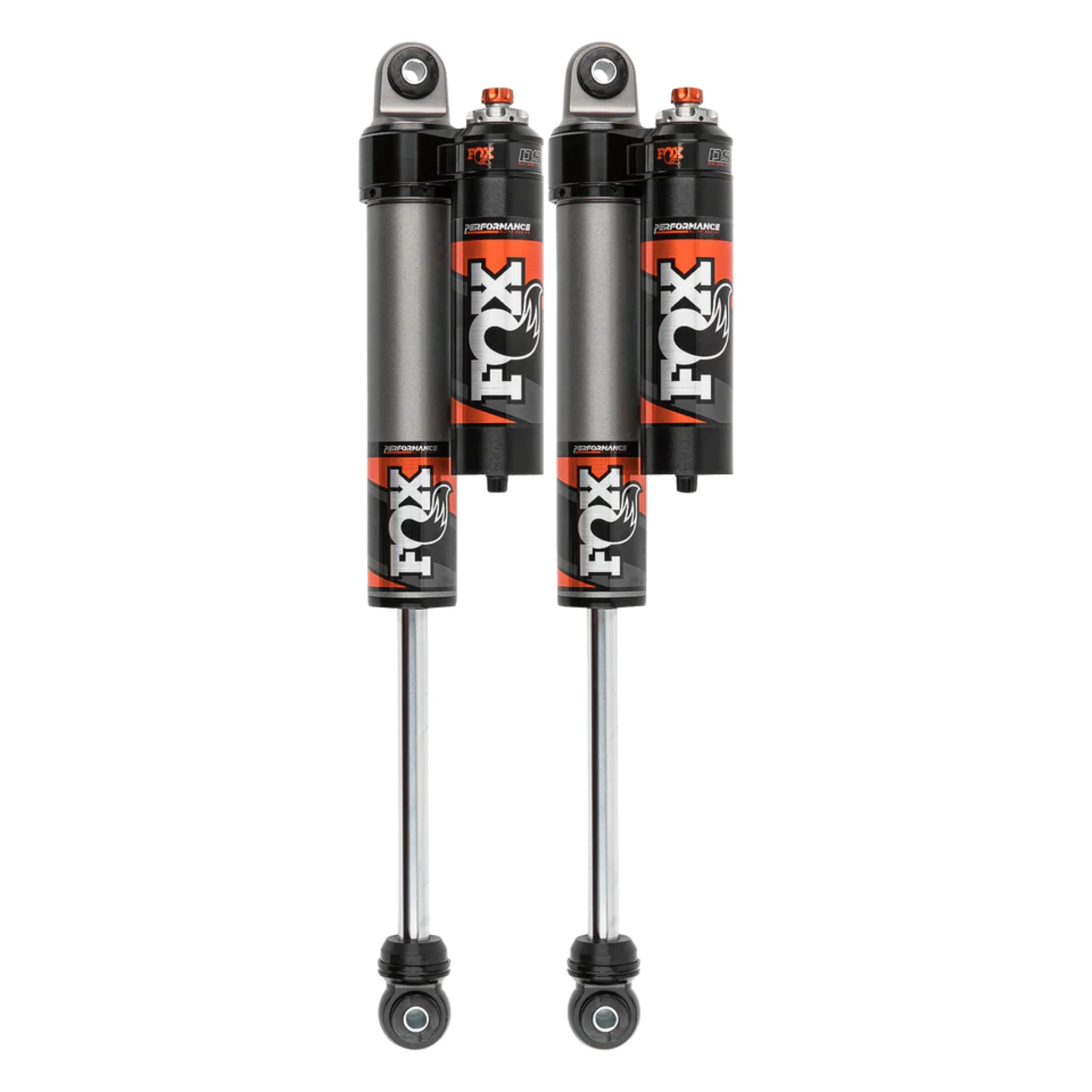

- (2) Fox 2.5 Performance Elite Series Resi Rear Shocks (Part# 883-26-085)
Notes:
- When running stock wheels with oversized tires clearance is limited and may rub control arm.
Optional:

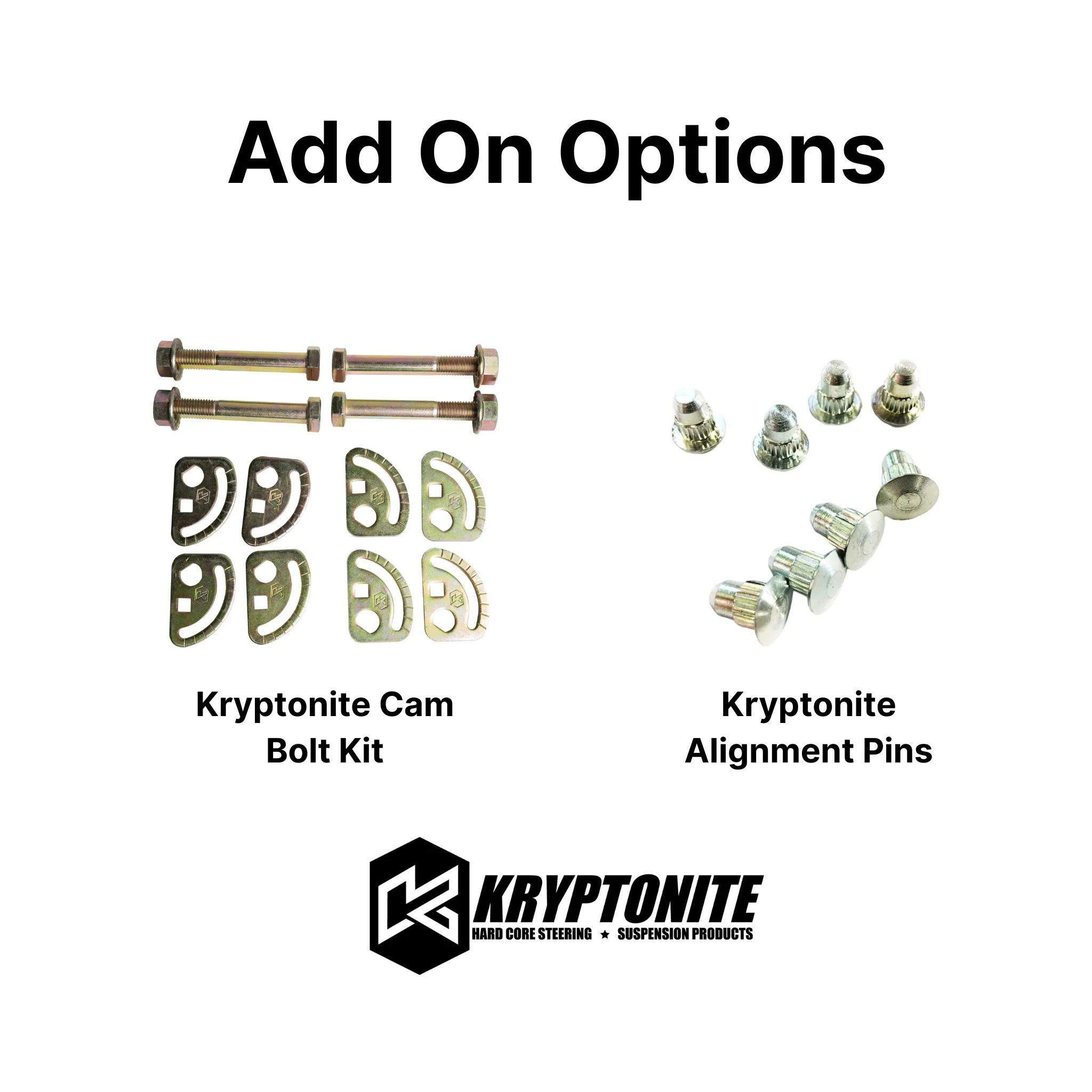

- Kryptonite Cam Bolt Kit (Part# KR86376)
- Kryptonite Alignment Pins (Part# KR86325)
- Kryptonite Torsion Bar Adjusters (Part# KRKN11)
Fox Shocks:
Performance Elite Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from our Off-Road race shocks, so they've been thoroughly perfected in brutal conditions that you will probably never see. Our athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck or SUV.
External reservoir allows for increase oil and nitrogen capacity while delivering striking race look. Applications are available to fit most stock and lifted Trucks and SUVs. Our complete line of bolt-on, Performance Elite shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Performance Elite Series 2.5 Reservoir shocks deliver.
Features:
- 2.5" impact extruded and CNC machined 6061-T6 hard anodized aluminum body resists rust over time
- Hard-anodized for a durable finish
- External reservoir design separates shock oil from the high-pressure nitrogen
- Black-anodized, CNC-machined 6061-T6 billet aluminum
- 7/8" hard chrome plated heat-treated alloy steel
- Race-developed high-flow piston design
- Application specific valving to maximize performance
- Redundant sealing pack system main seal, wiper seal, scraper seal
- PTFE-lined, heat-treated, alloy steel spherical
- DSC - Dual Speed Compression Adjuster
Front Shocks(1.5-2.5" Lift):
- Extended Length- 19.17"
- Compressed Length- 13.26"
- Travel- 5.91"
- Top Mount- Bar Pin
- Bottom Mount- Clevis
Rear Shocks(0-1" Lift):
- Extended Length- 26.31"
- Compressed Length- 16.34"
- Top Mount- Eyelet
- Bottom Mount- Eyelet
Original: $3,951.90
-65%$3,951.90
$1,383.16
