DmaxStore Replacement Transmission Mount, 2020-2024 L5P

Fits: 2020 thru 2024 Chevy Silverado/GMC Sierra 2500HD/3500HD L5P Duramax Diesel

Replace your worn out transmission mount with this DmaxStore replacement. Made from high quality heavy duty rubber, this mount reduces excess vibrations unlike a solid or polyurethane style mount. Direct fit for the 10L1000 Transmission equipped in 2020+ L5P Duramax trucks. The original transmission mount studs and bolts are one time use only, if the mount is removed, all must be replaced.

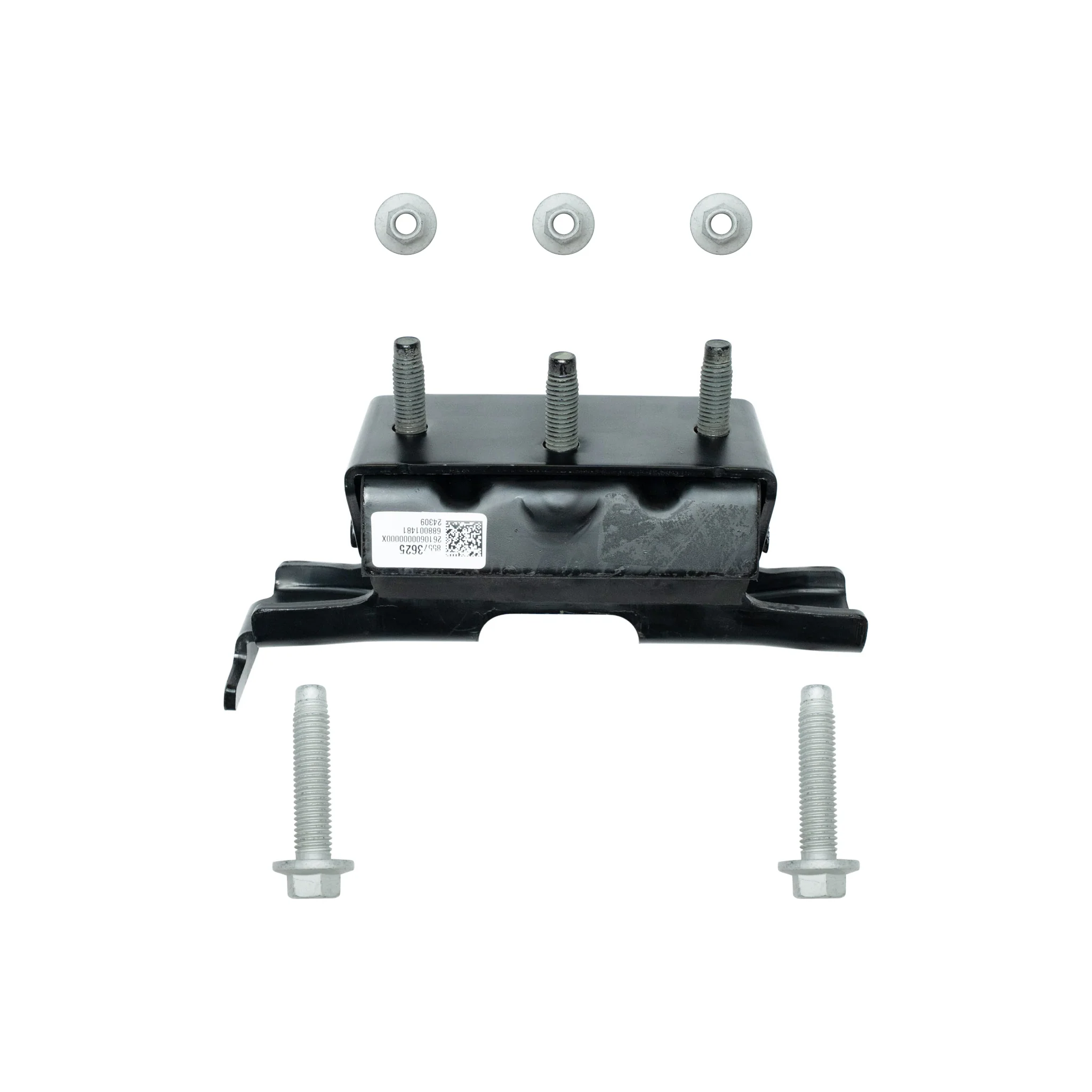

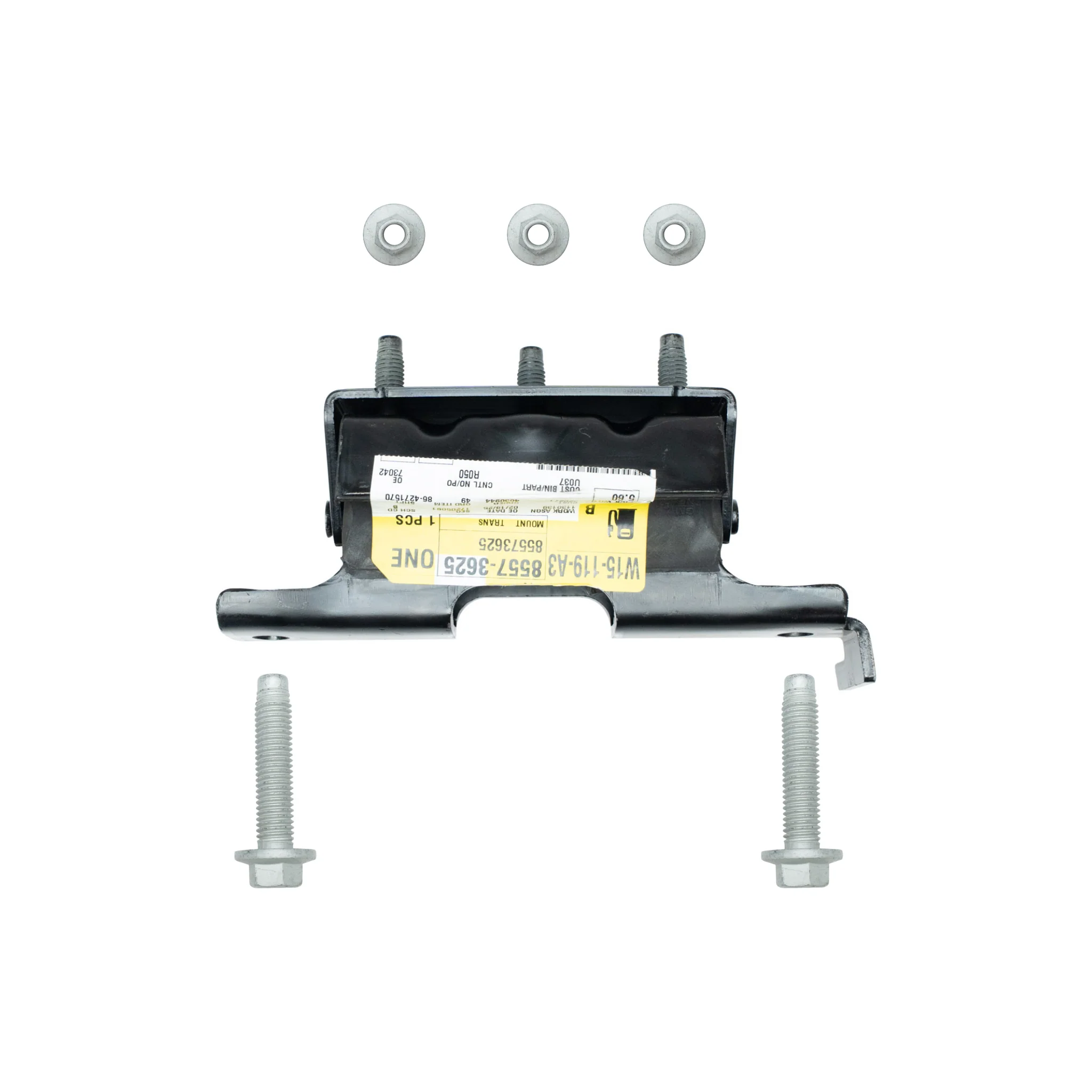

Includes:

• 1x Transmission Mount with 3x Crossmember Studs

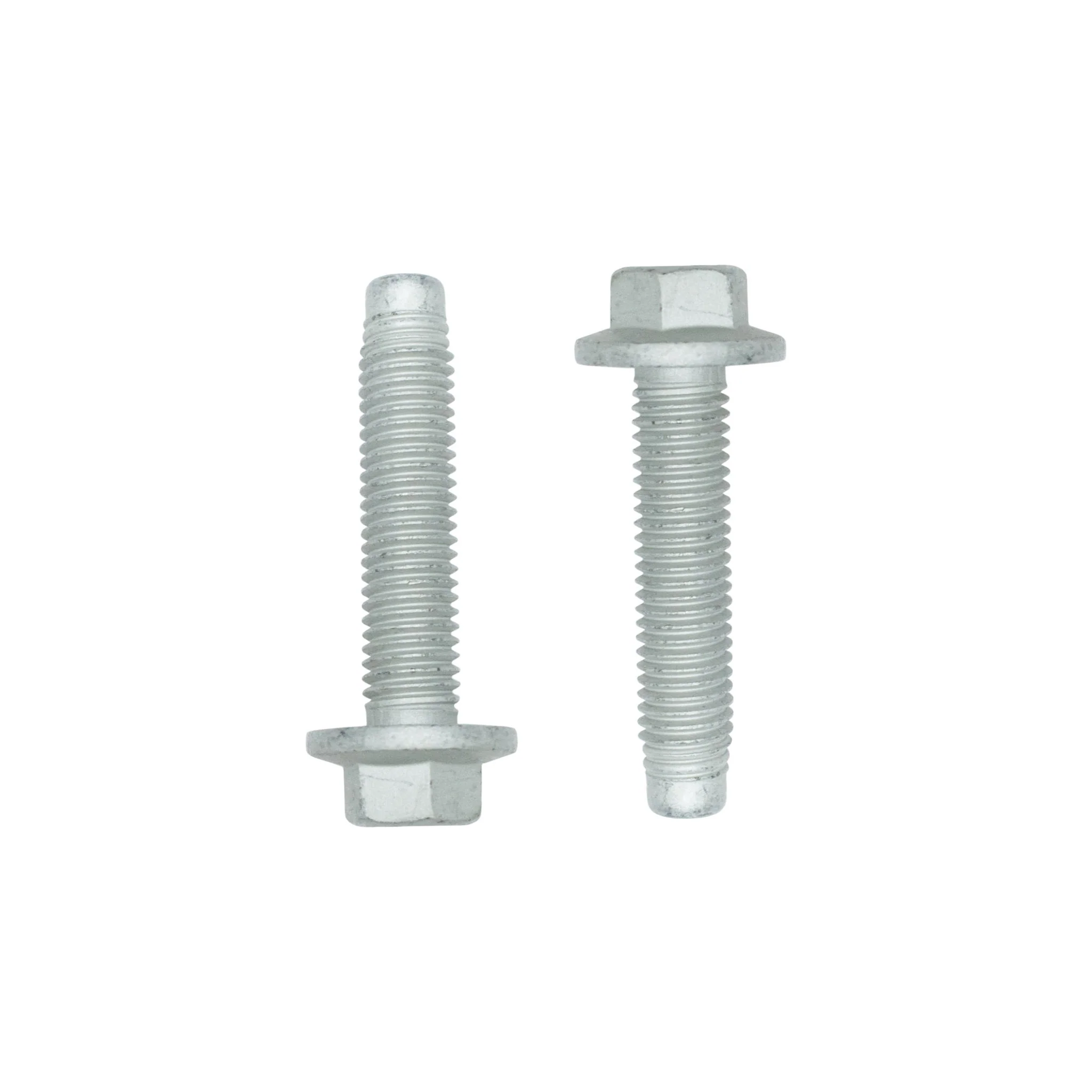

• 2x Mount to Transmission Bolts

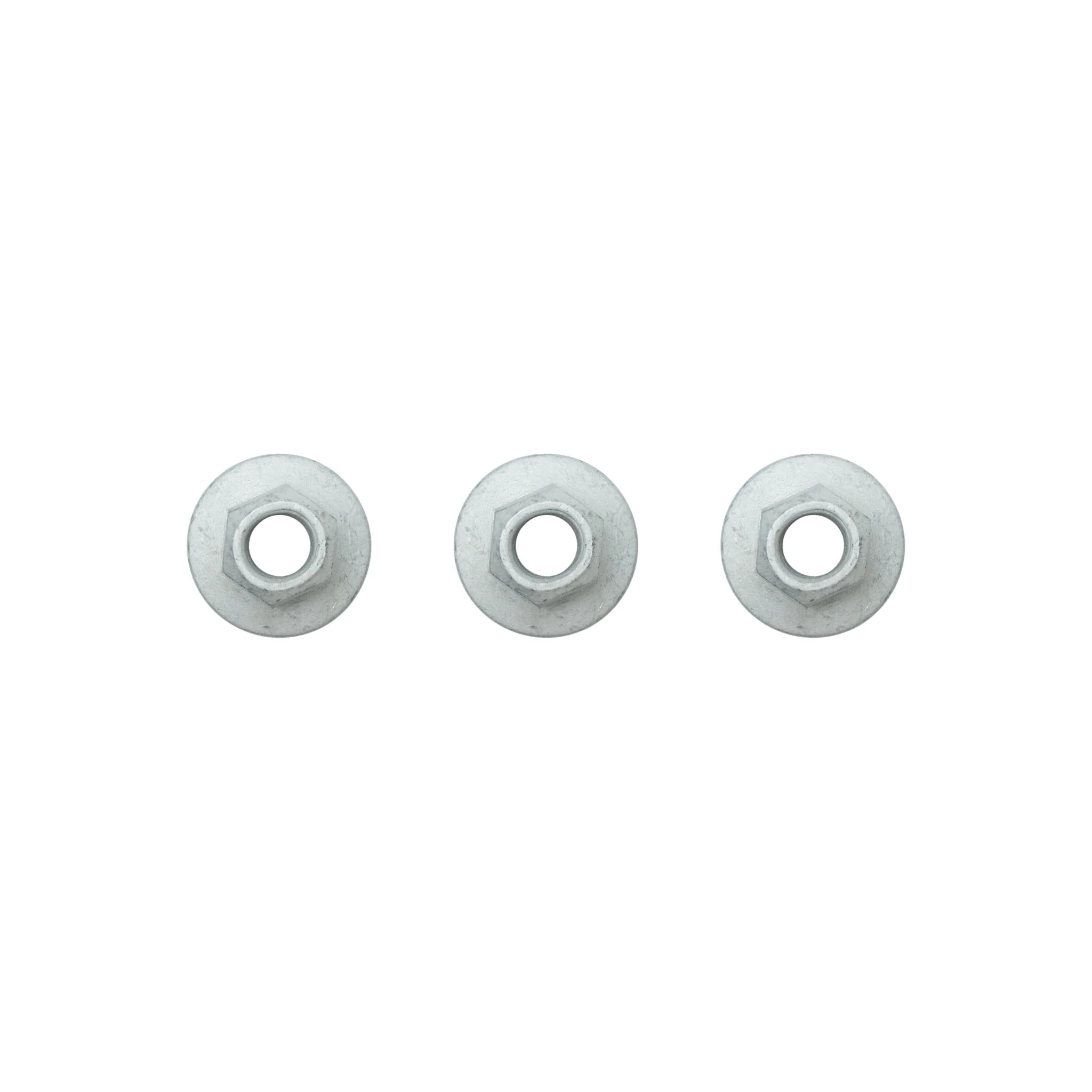

• 3x Mount to Crossmember Nuts

Replaces Part#:

• GM 85573625
• GM 11548787
• GM 11548414

Torque Specs:

• Mount to Transmission Bolts - First Pass: 74 lb ft, Final Pass: 60 degrees
• Mount to Crossmember Nuts - First Pass: 33 lb ft, Final Pass: 45 degrees

Notes:

• Fits 4WD trucks only
• Factory hardware is torque to yield(one time use) and needs to be replaced.
