DMAX XD Wheel Bearing, 2007.5-2010 LMM Single Rear Wheel
Fits: 2007.5 thru 2010 Chevy Silverado/GMC Sierra 2500HD/3500HD LMM Duramax Diesel SRW Only & Hummer H2Â
*Will NOT fit Dually trucks*
*Sold Individually*
If you’re replacing a worn hub or refreshing the front end on your Duramax, the Dmax XD (Xtreme Duty) Wheel Bearing delivers dependable performance at a smart value.
The XD lineup is a DmaxStore exclusive, designed as a complete, bolt-in replacement for factory wheel bearings. Each assembly comes fully loaded with new wheel studs and a pre-installed ABS sensor, eliminating the need to reuse worn components or source additional parts.
Built for daily driving, towing, and work use, this hub installs easily and restores smooth operation, proper ABS function, and solid steering feel.
Features:
- OE-Style Design & Fitment – Direct bolt-in replacement built to match factory geometry and tolerances
- Precision Tapered Roller Bearings – Smooth operation with long-term, maintenance-free performance
- High-Carbon Steel Construction – Improved strength and fatigue resistance in critical load areas
- Preloaded, Roll-Formed Assembly – Factory-set preload helps prevent end play and installation-related failures

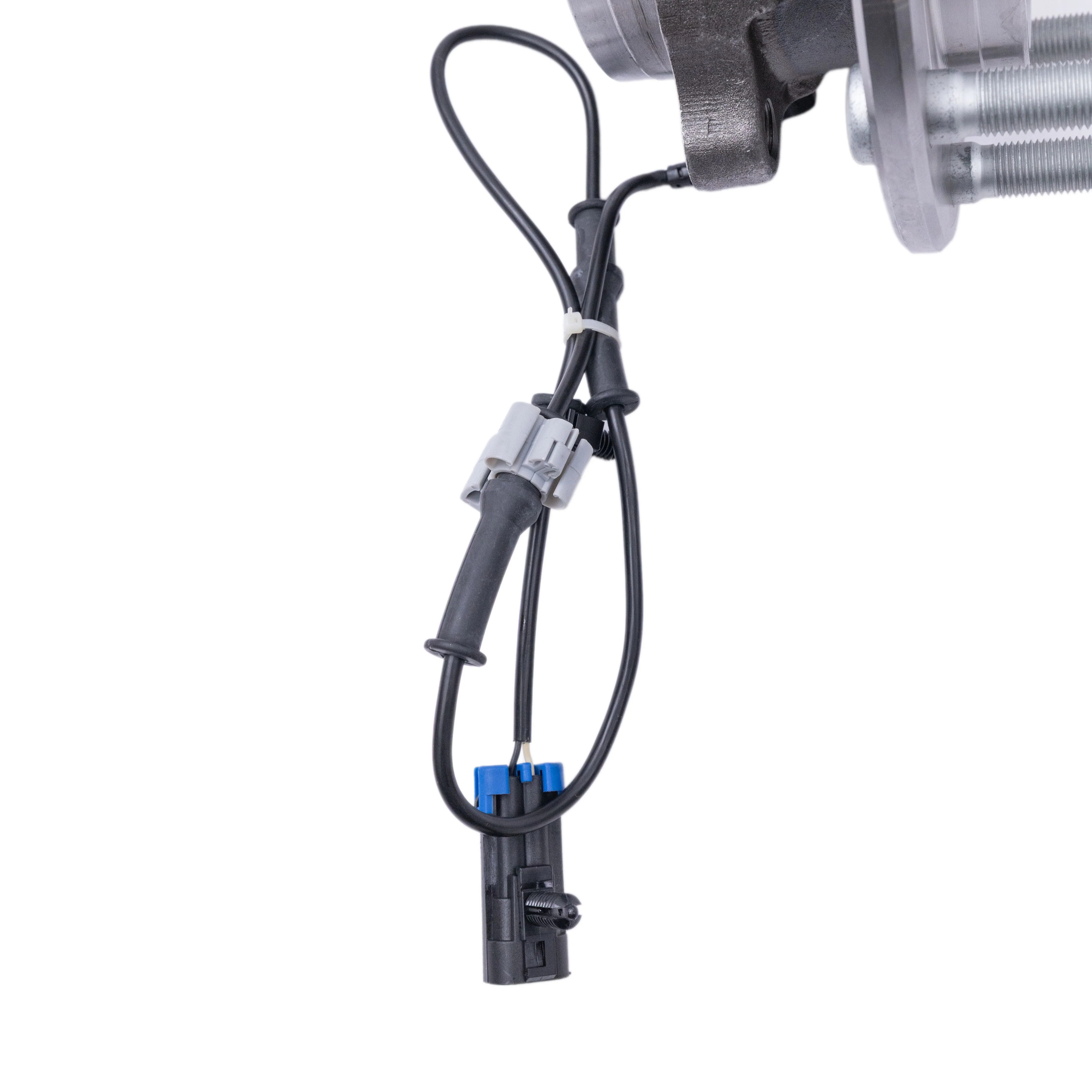

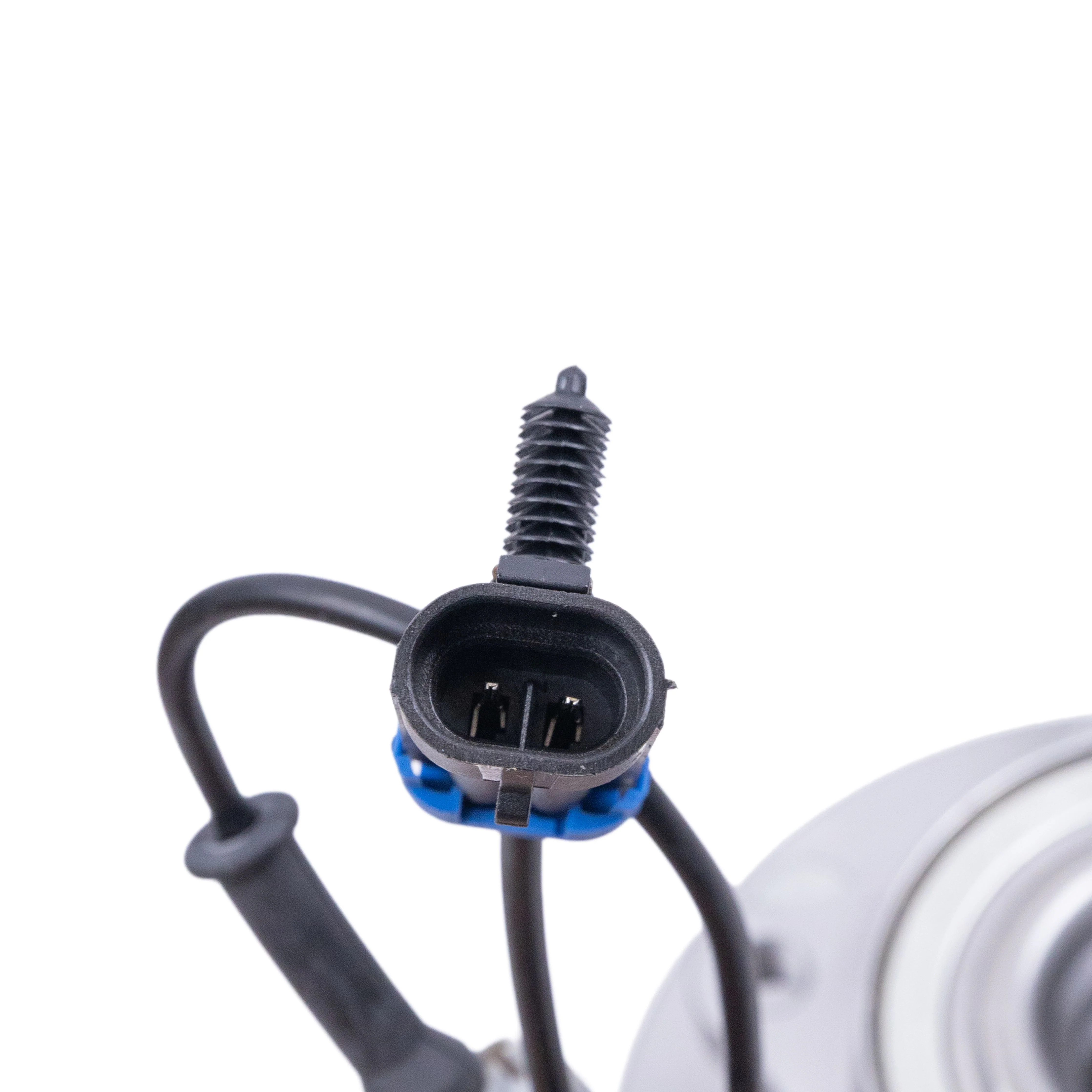

- Pre-Installed ABS Sensor – Tested for proper signal and plug-and-play compatibility
- New M14-1.50 Wheel Studs Installed – Manganese Phosphate coated for corrosion resistance and consistent torque retention
- Universal Left or Right Fitment – Works on driver or passenger side, 2WD or 4WD applications
Includes:

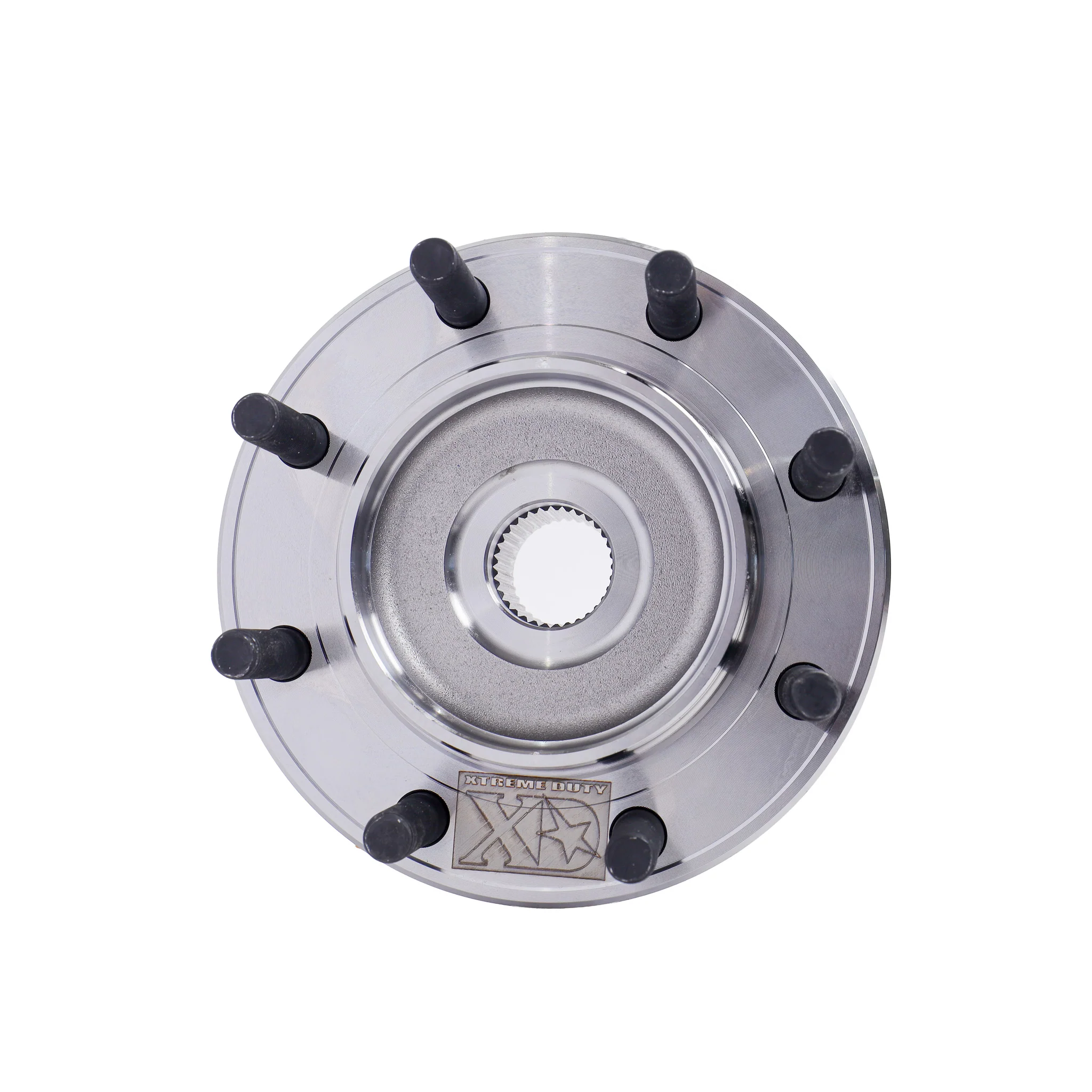

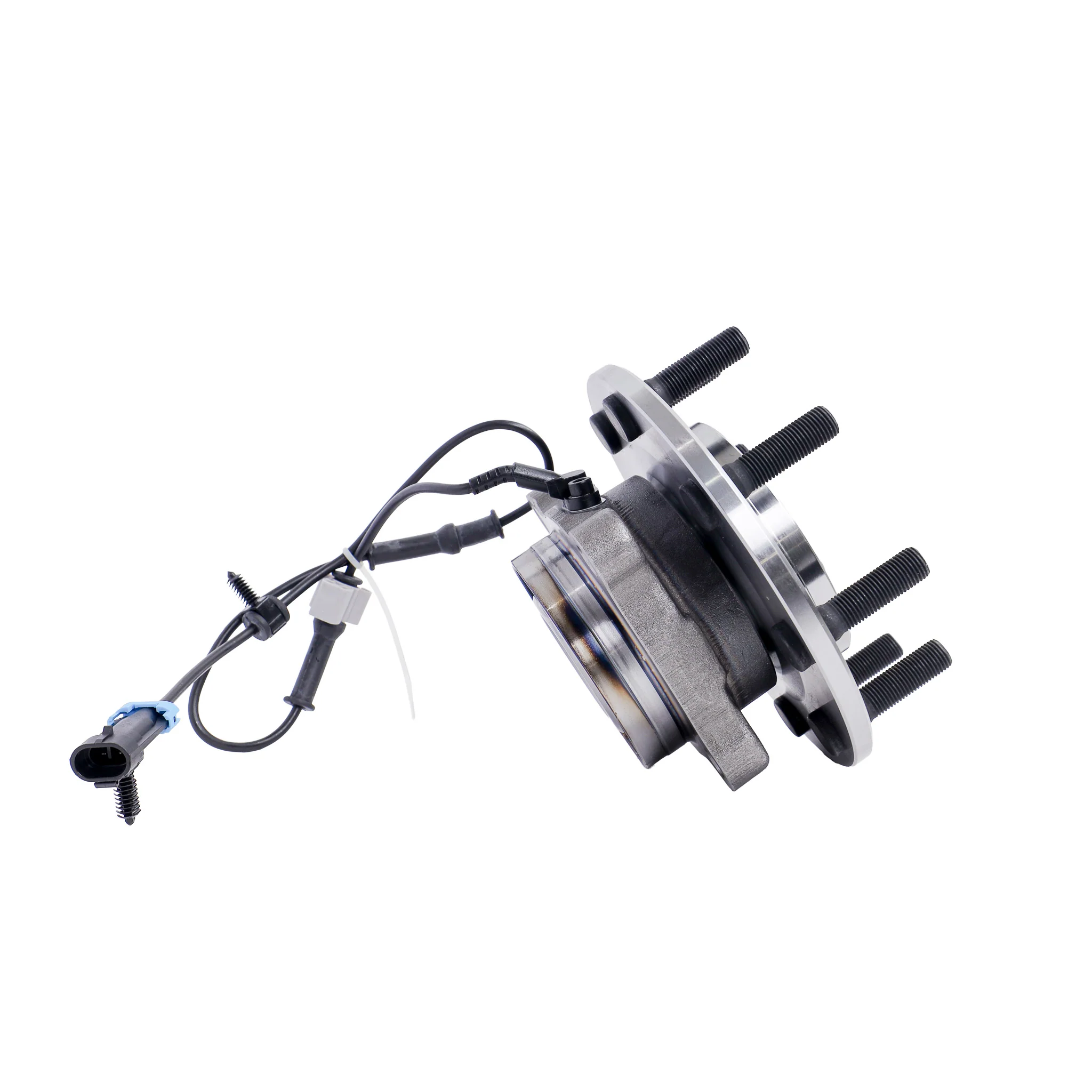

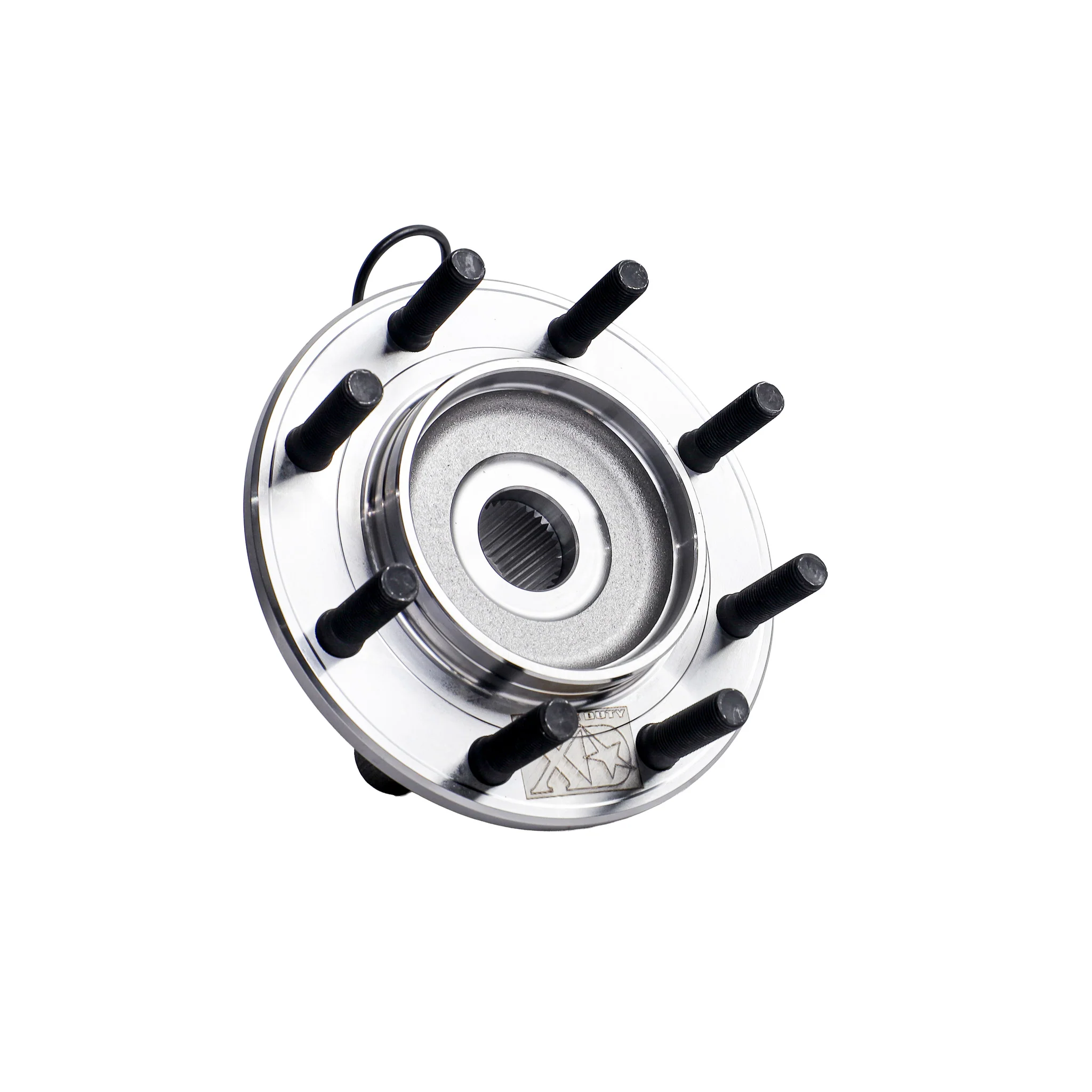

- Front Hub Assembly (Universal for Driver or Passenger side)
- 8 New Studs
- New ABS Sensor
Optional:

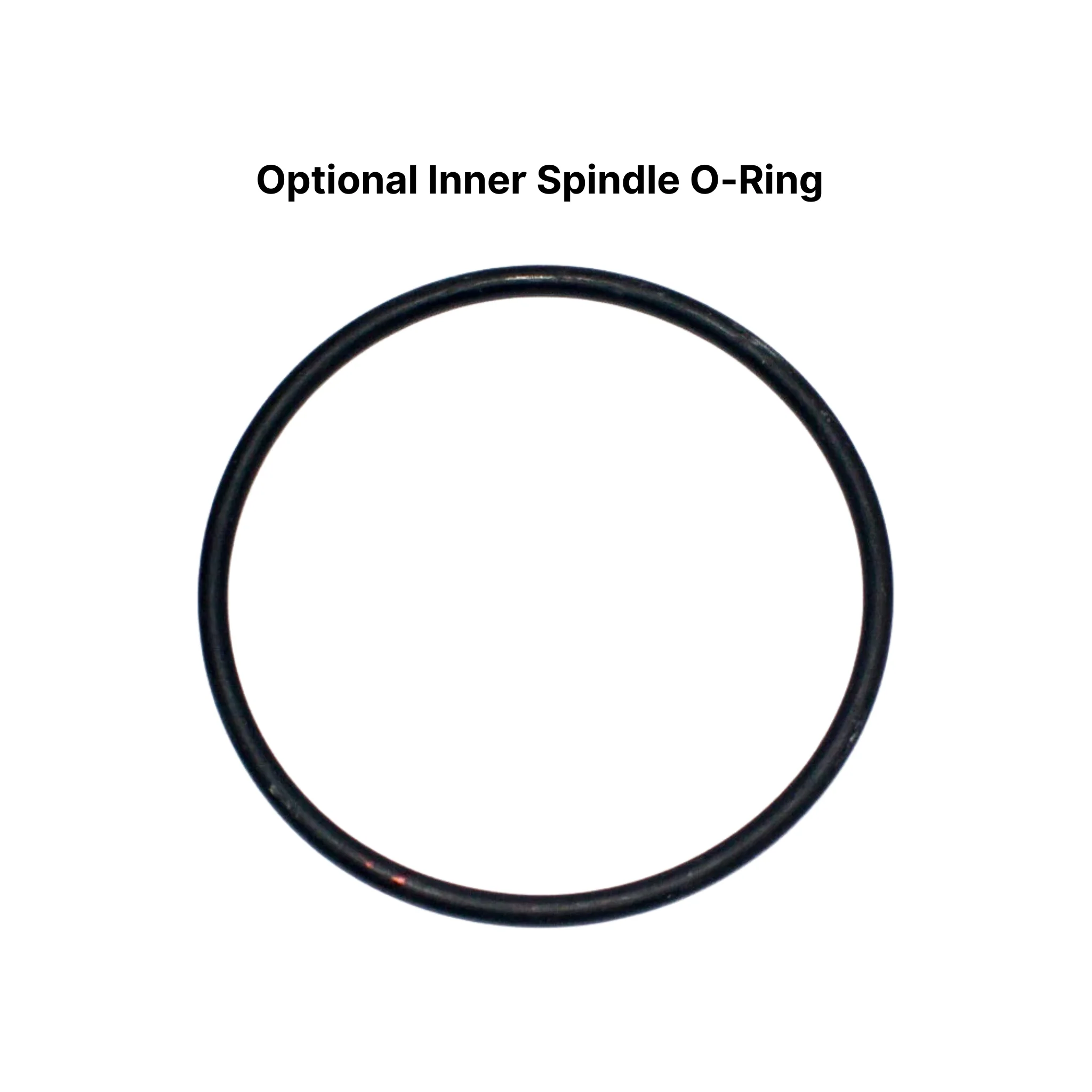

- Inner Spindle O-Ring provides a barrier to protect the wheel bearing and axle of internal corrosion.
- Zinc Plate Spindle Bolts to prevent any form of oxidization

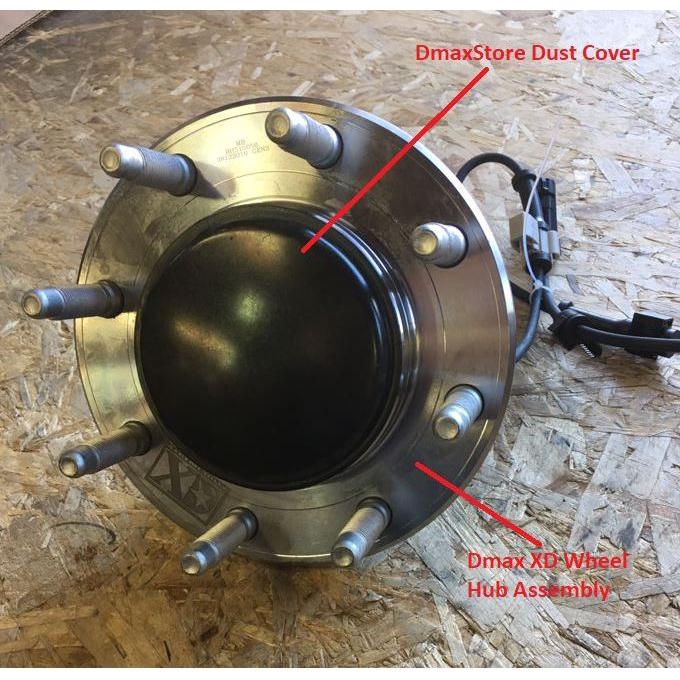

- Dust Cover
- CV Axle Nut & Washer
- 2ml Red Threadlock
Torque Specs:
- Axle Nut-177 lb.ft
- Spindle Bolts-133 lb.ft
- Main Caliper Bolts-221 lb.ft
Notes:
- Will NOT fit Dually models
- Don't forget to throw on some flashy DmaxStore Valve Stem Caps while under the truck!
Warranty:
- (Dmax XD Warranty) Dmaxstore XD Steering and suspension parts come with a 3 year unlimited mileage warranty to the original purchaser. Warranty period begins at date of purchase. If a failure occurs, Dmaxstore will replace the failed part only once it has been received at our facility. Shipping costs are not included under the warranty.
Original: $139.99
-65%$139.99
$49.00
