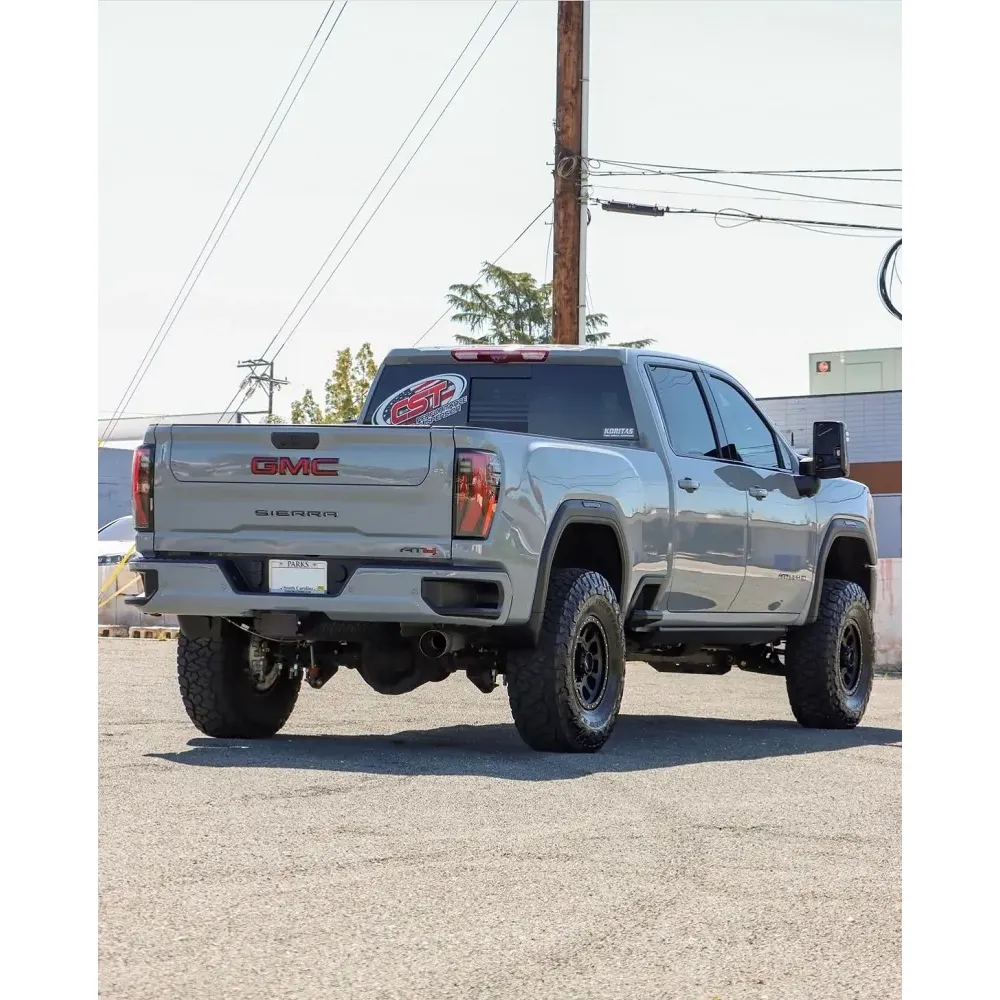

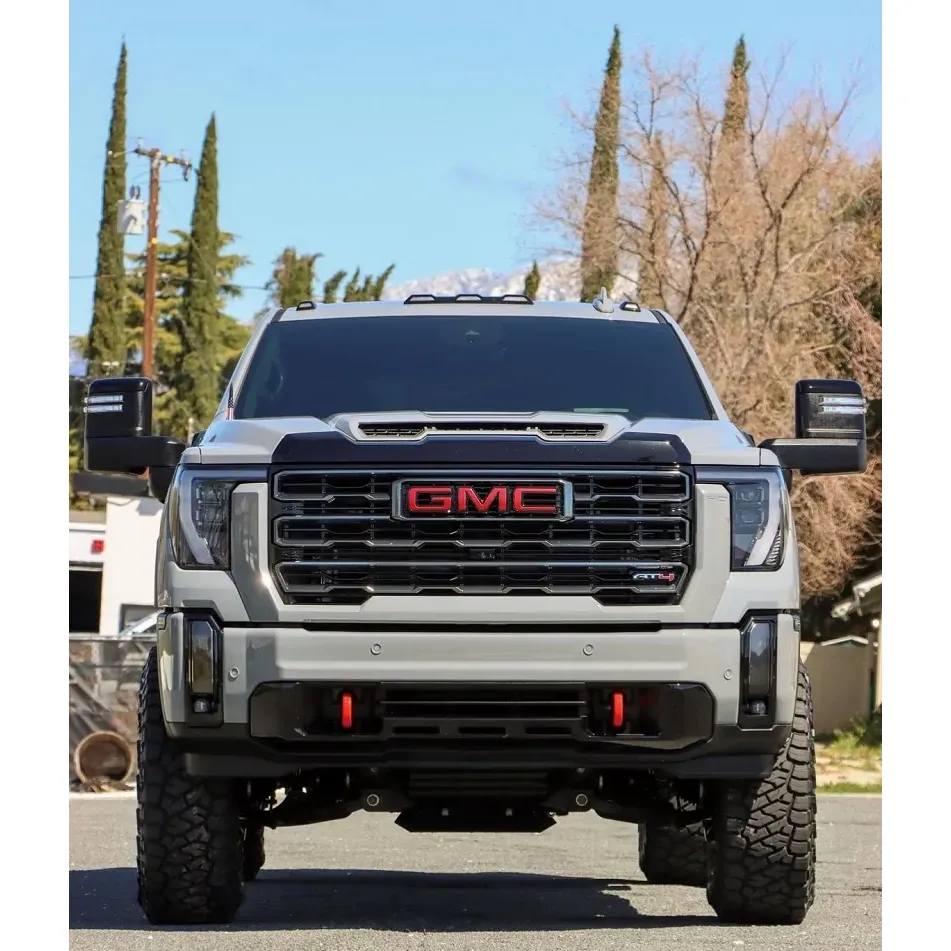

CST 3" Lift Kit, 2024-2025 AT4X/ZR2 L5P

Fits: 2024 thru 2025 Chevy Silverado/GMC Sierra 2500HD L5P Duramax Diesels

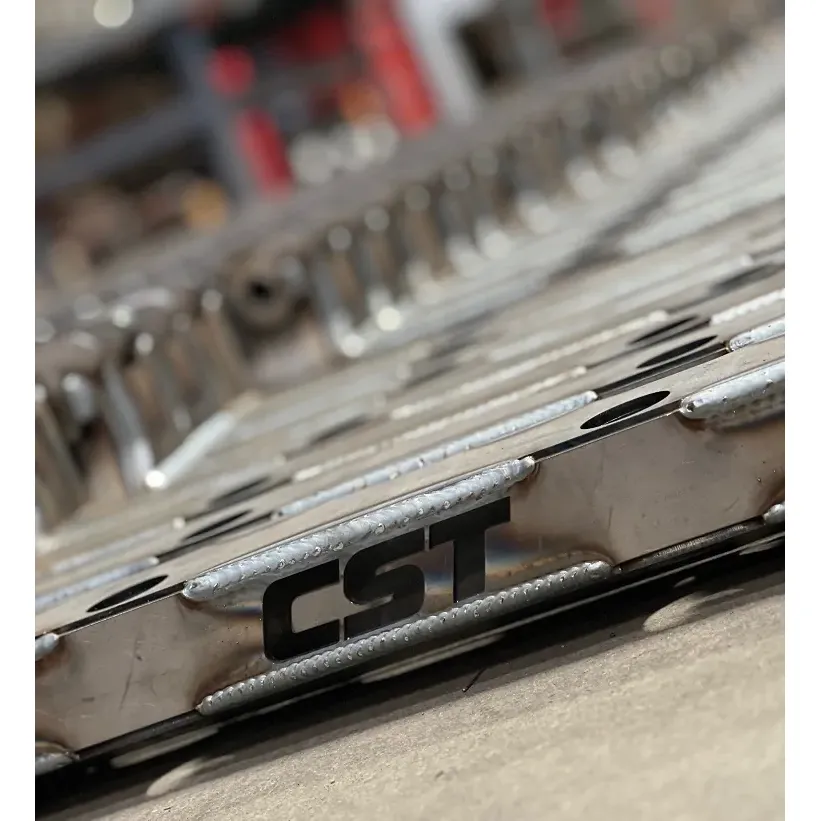

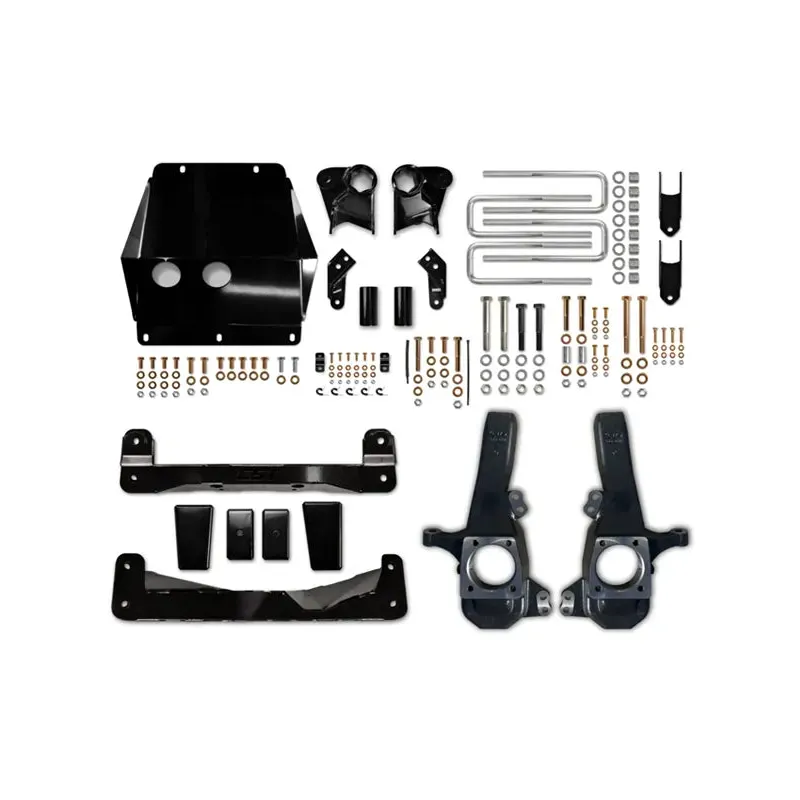

CST 3″ STL Performance Suspension System for the 2024+ Chevy & GMC 2500HD AT4X/ZR2 Trucks. This new kit will provide superior performance on or off-road. Sub frames are designed to give you the most ground clearance while protecting vital front suspension components. All CST products are precision-fabricated in-house to provide superior strength and durability. CST Performance Suspension products are designed and manufactured in the USA!

Features:

• No need to cut or modify the UCA pocket.

• Superior control arm, CV, and tie rod angles.

• High-clearance, fully boxed X-members.

• Kit includes a steel lower skid plate to protect the front differential.

• Increased suspension travel, tire, and ground clearance.

• Stock torsion location (STL) for maximum ground clearance.

• Reuse O.E. shocks; kit includes front shock adapters.

• GM StabiliTrak approved.

• Parts finished in high-quality gloss black powder coat.

• No welding required.

• Faster installation compared to other manufacturers' kits.

• Cast iron knuckles.

• CST offers superior quality in fit, function, and finish.

• Enhances handling.

• Kit maintains the original load rating and tow capacity.

• Can be returned to stock configuration.

• True 3-inch lift.

• Level stance without sacrificing ride quality.

• Clears tires up to 37 inches.

• Made in the U.S.A.

Wheel & Tire Fitment:

• 17″ Wheels – 5″ Max backspacing

• 18″ Wheels – 5.75″ Max backspacing

• 20″ Wheels – 6″ Max backspacing

• 17×9 w/5″ Backspacing 37×12.5″ tire / minor trimming

• 20×9 w/5″ Backspacing 37″ tire / minor trimming

• 20×9 w/5″ Backspacing 35″ tire / no trimming

DmaxStore Notes:

• This kit is designed specifically for the 2500HD AT4X/ZR2 model trucks.

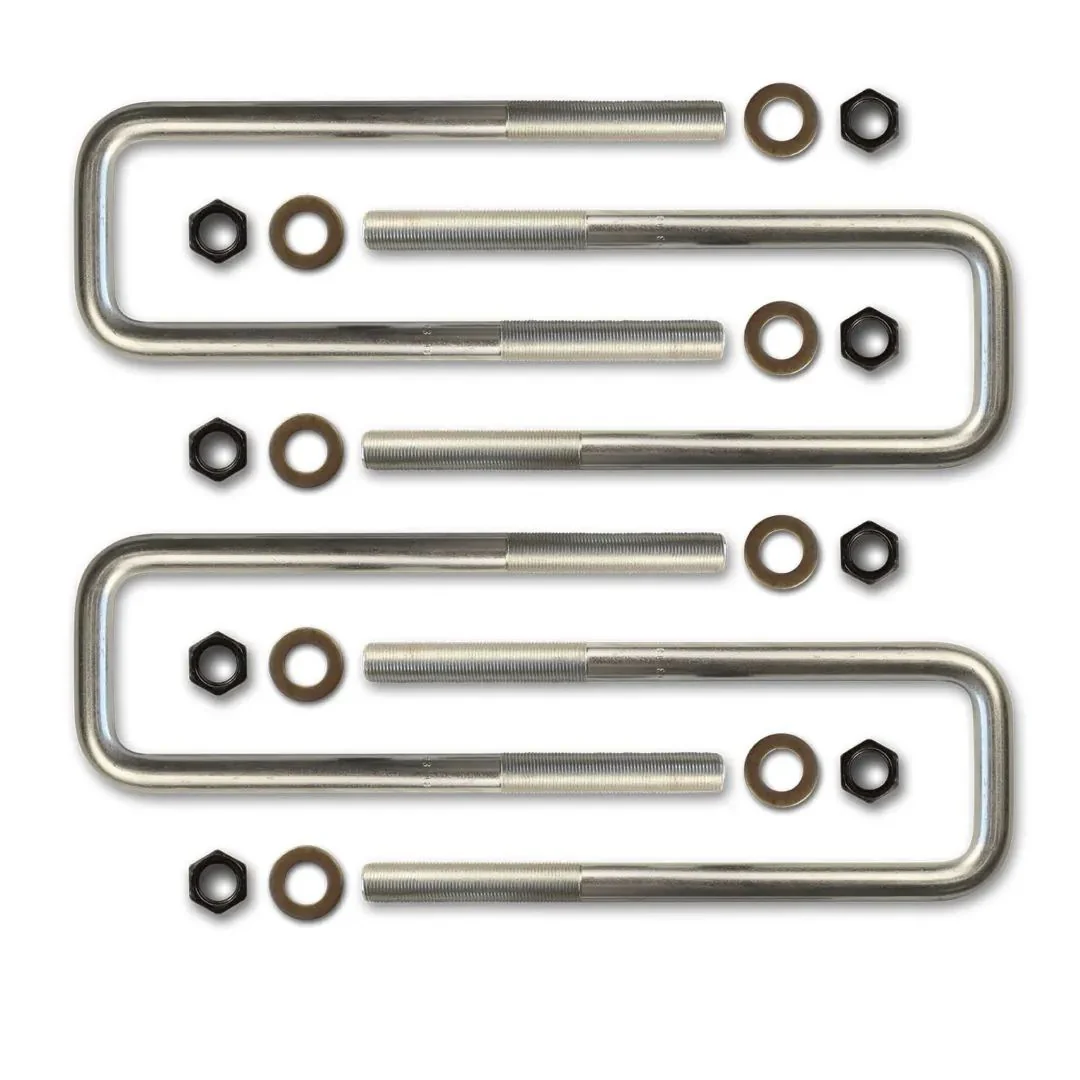

• 2500 trucks w/ Over-Loads or Max Tow pkg. may require 17″ U-Bolts

• TRUCKS EQUIPPED WITH OVER-LOADS OR MAX TOW PKG. MAY NEED LONGER U-BOLTS
